Adams Rite 4590

Deadlatch Paddle for Use with 4500/4900 Deadlatches

Quick Product Details

  • Deadlatch Paddle Trim
  • Used With: Adams Rite 4500/4900 Deadlatches
SKU: 4590

Price: $66.00

Choose Options Below

  • Night latch pull with escutcheon function. Key retracts latch, key removable only when locked.
  • Night latch function requires a rim cylinder, not included.
  • For all types of single and double doors with a mullion.
  • Devices are BHMA certified for ANSI 156.3, Grade 1.
  • Non Handed.
  • Furnished standard for 1-3/4" thick doors.
  • 3 ft device fits doors 2'-7" to 3'-0".
  • 4 ft device fits doors 3'-1" to 4'-0".
  • Latch bolt, stainless steel, deadlocking, 3/4" throw.
  • Hex key dogging (passage mode) standard.
See more product information below

  • In Stock!
  • Order in the next hour 38 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $66.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose Handing:

Need Help Deciding?

Help Me Decide

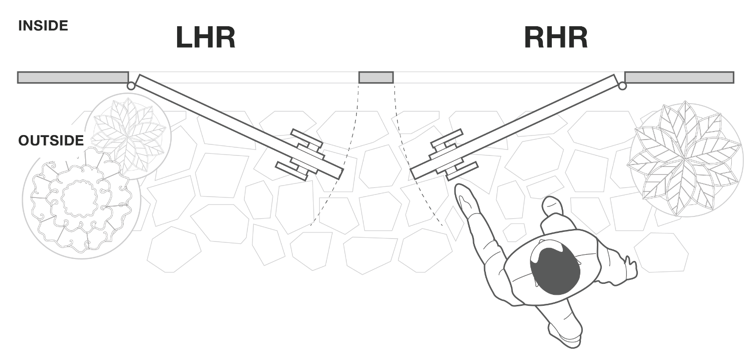

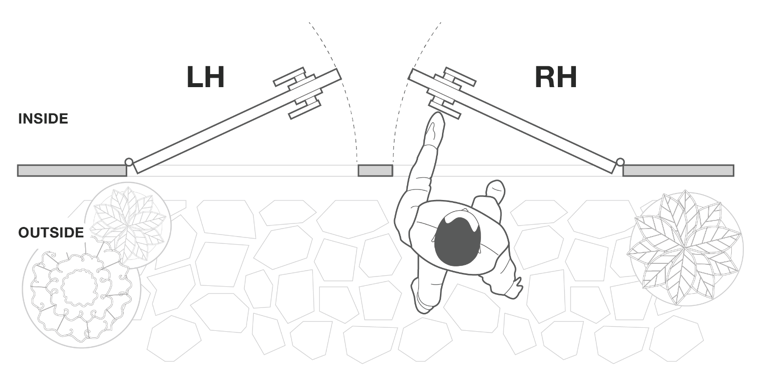

Just Push or Pull in the direction the door swings.

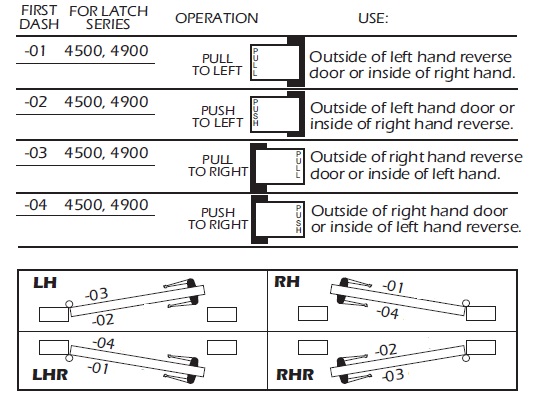

  • 01 - pull to left; for outside of left hand reverse or inside of right hand door.
  • 02 - push to left; for outside of left hand or inside of right hand reverse door
  • 03 - pull to right; for outside of right hand reverse or inside of left hand door.
  • 04 - push to right; for outside of right hand or inside of left hand reverse door.

Overview


Quality:
  • 5 year limited warranty from date of manufacture

Available Options: Choose Options Above

Product at A Glance

  • Furnished with a Cam Plug
Style Deadlatch Paddle
Used With Adams Rite 4500/4900 deadlatches
Handing Handed
Door Thickness 1-3/4"

Technology

Special order item with 4 week lead time.

  • Requires no wiring to or through the door. Self-Powered with PowerStar technology , the lock generates its own power with every turn
    of the lever.
  • Charge Lasts up to 10 Weeks.
  • Multiple Users—100 codes, 4 to 8 digits
  • Audit Trail, The most recent 1,000 lock events are recorded in memory, including use of the
    mechanical key override. Software is required to view audit events.
  • Non-handed, pre-assembled for left-hand door installations, easily changed in the field.
  • Lock is easily programmed via keypad or with optional Microsoft® Excel®-based
    software.
  • Key Override, Kaba 1539 6-pin cylinder Schlage ”C“ Keyway
  • Satin Chrome 626 (26D)
  • 2-3/4" backset, 5" minimum stile
  • Door thickness, pre-assembled to accommodate doors 1-5⁄8" to 2".

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Deadlatch Paddle for Use with 4500/4900 Deadlatches
