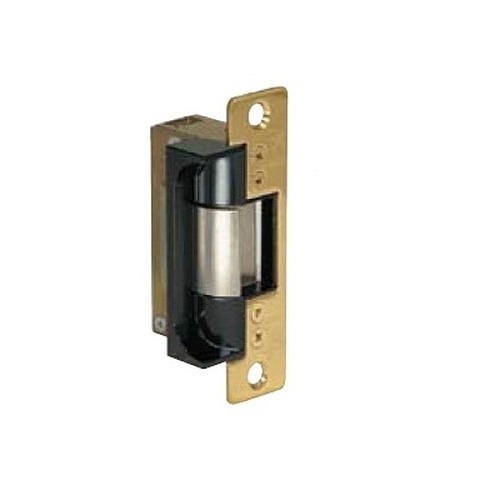

Adams Rite 7160

Electric Strike for Aluminum Jambs with 3/4" Mortise or Cylindrical Latches

Quick Product Details

  • Electric Strike
  • For Aluminum Jambs
  • Used With: Mortise or Cylindrical Latches With 3/4" Projection, Without Deadbolt
Price: $186.00 /each

SKU: 7160

Choose Options Below

This Adams Rite 7160 is an electric strike for aluminum jamb application where remote control of the opening is necessary. It is used with mortise or cylindrical latches with 3/4" projection and without a deadbolt.

  • Stock Item
  • Order in the next 37 hours 27 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $186.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Voltage:

Need Help Deciding? QH chevron down
12VDC
12VAC
16VDC
16VAC
24VDC
24VAC

Help Me Decide

  • DC - continuous units are silent
  • AC - intermittent units buzz when operated


    Volts

    AC Intermittent

    DC Continuous
    12 1.42 amp .33 amp
    24 .74 amp .17 amp



Choose Finish:

313 Dark Bronze Anodized Aluminum 313 Dark Bronze Anodized Aluminum
628 Clear Anodized Aluminum 628 Clear Anodized Aluminum

Choose Fail Secure-Fail Safe:

Fail Secure standard
Fail Safe (FS)

Help Me Decide

  • Fail Secure - (standard) electric strikes require power to be applied in order to unlock the strike lip. Upon loss of power, the strike is locked.
  • Fail-Safe - electric strikes require power to be applied in order to lock the strike lip. Upon loss of power, the strike is unlocked. Building codes prohibit the use of fail-safe strikes on labeled openings.
  • Field convertible .



Overview


Quality:
  • ANSI Grade 1
  • UL listed as burglary resistant
  • 3 year limited warranty from date of manufacture

Available Options: Choose Options Above

  • Voltage: info icon

    • 12VDC
    • 12VAC
    • 16VDC
    • 16VAC
    • 24VDC
    • 24VAC
  • Finish:

  • Fail Secure-Fail Safe: info icon

    • Fail Secure standard
    • Fail Safe (FS)

Product at A Glance

  • Includes the strike body and faceplate
  • The extremely compact mechanism fits into aluminum jamb or opposing door as shallow as 1-7/8”
  • This strike has a lip designed for 1-3/4” thick doors that close flush with the jamb edge
  • All 3/4” throw latches require a 1/8” minimum door gap
  • Horizontal center line of strike must match center line of mortise latch bolt
Style Electric Strike
Used With Mortise or cylindrical type locksets with 3/4" projection and without deadbolt
Application Aluminum Jambs
Faceplate 1-1/4" wide x 4-7/8" high flat faceplate with radiused corners
Case 1" x 3-3/8" x 1-5/8" deep
Strike Opening 3/4" x 1-7/16" x 5/8" deep

More Info

This electric strike is used to remotely release locked doors that are operated with mortise or cylindrical locksets with 3/4” projection and without a deadbolt. The mechanism is extremely compact to fit into aluminum jamb applications as shallow as 1-7/8”. The package includes a strike body and a flat faceplate with radiused corners that measures 1-1/4” wide x 4-7/8” in height.
