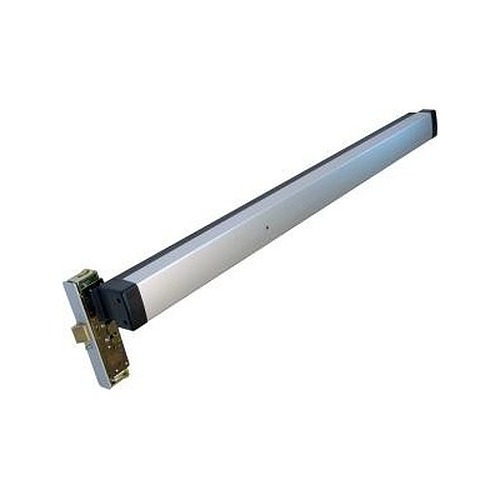

Adams Rite 8400

Narrow Stile Mortise Exit Device

Quick Product Details

Mortise Exit Device
For Aluminum Narrow Stile Glass Doors

Price: $508.00 /each

SKU: 8400

This Adams Rite 8400 is an excellent mortise exit device that will fit narrow, medium and wide aluminum stile glass doors. It is available with various push-bar lengths, in a variety of backsets and with handing options, to make for a device that will perfectly suit the needs of your application.

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $508.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

628 Clear Anodized Aluminum

313 Dark Bronze Anodized Aluminum

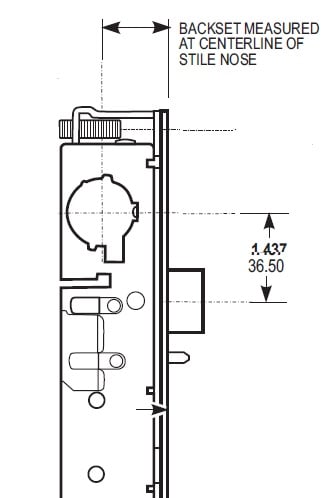

Choose Backset:

31/32" Backset (2 31/32")

1-1/8" Backset (3 1-1/8")

1-1/2" Backset (4 1-1/2" )

Help Me Decide

Choose Handing:

Left Hand Reverse (LHR)

Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Bar Size:

36" Fits a 36" Door Opening

42" Fits a 42" Door Opening

48" Fits a 48" Door Opening

Help Me Decide

Select the push-bar length that will best fit the width of your door.

36” push-bar for door opening up to 36”
42” push-bar for door opening up to 42”
48” push-bar for door opening up to 48”

Standard width bars can be cut to the next smallest size

1 Choose Finish:
2 Choose Backset:
3 Choose Handing:
4 Choose Bar Size:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality:

ANSI/BHMA 156.3 Grade 1
UL Listed Life Safety
Fully meets building codes and ADA guidelines for accessibility.
5 year limited warranty from date of manufacture

Available Options: Choose Options Above

Finish:
- 628 Clear Anodized Aluminum
- 313 Dark Bronze Anodized Aluminum
Backset:

Backset
- 31/32" Backset (2 31/32")
- 1-1/8" Backset (3 1-1/8")
- 1-1/2" Backset (4 1-1/2" )
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse (LHR)
- Right Hand Reverse (RHR)
Bar Size:
Bar Size
Select the push-bar length that will best fit the width of your door.

36” push-bar for door opening up to 36”

42” push-bar for door opening up to 42”

48” push-bar for door opening up to 48”

Standard width bars can be cut to the next smallest size
- 36" Fits a 36" Door Opening
- 42" Fits a 42" Door Opening
- 48" Fits a 48" Door Opening

Product at A Glance

Fits narrow, medium and wide aluminum stile glass doors.
Hex key dogging standard.
Push bar length can be cut to size in the field.
The push-bar is made of extruded aluminum.
The 8400 was designed to fit standard cutout used for the Adams Rite MS deadlock.

Style	Mortise Exit Device
Application	Aluminum stile glass doors
Function	Exit Only; - No entry from outside - Trim available separately
Handing	Handed
Door Thickness	1-3/4" (standard)
Stile	Minimum 2"
Projection	- 2-5/8" - When dogged 1-5/8"

More Info

This spectacular exit device features many options that make it versatile for use in many different application conditions. It is available with three different push-bar lengths and three options. It is also available as right hand reverse or left hand reverse to properly suit the opening in which it is going to be placed.
