Alarm Lock DL2700IC

Trilogy T2 Electronic Digital Lock with IC core Prep


Price: $539.00

Choose Options Below

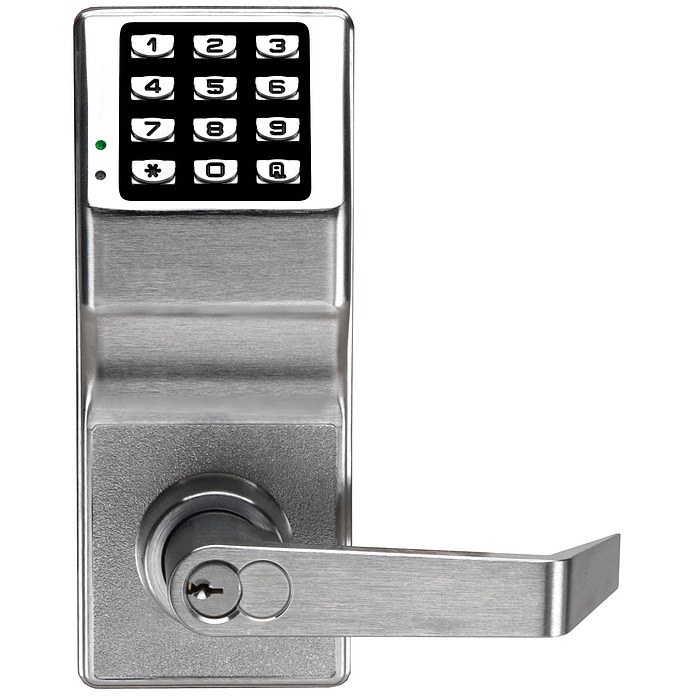

The Alarm Lock Trilogy T2 DL2700IC is a standalone digital cylindrical keyless door lock with IC core prep key override. See more product information below

  • In Stock!
  • Order in the next 3 hours 25 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $539.00

Choose Options

Choose Finish:


  • Electronic battery operated digital lock.
  • Holds up to 100 user codes.
  • Standard model accepts Best Type small format interchangeable core 6 & 7 pin cylinders.
  • Core not included.
  • Up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes.
  • keypad programmable.
  • Powerd by 5 AA alkaline batteries (included).
  • Backset-2-3/4".
  • Vandal proof all-metal keypad.
  • Door thickness-1-5/8" to 1-7/8."
  • Non-handed.

Available Options: Choose Options Above

Tech Specs

  • Grade 1 heavy duty cylindrical lockset.
  • Latch bolt-UL Listed, fire rated, 3 hours, 1/2” throw, reversible.
  • Individual, group or total user lockout codes.
  • Easy passage mode by manager and or master.
  • UL listed 10C Positive Pressure Specification.
  • ADA compliant levers.
  • Outside lever free turning in locked position.
  • Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle.
  • Inside lever always instant egress .



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Trilogy T2 Electronic Digital Lock with IC core Prep
