Arrow AM19-HTHA-26D-IC6

Special Order Dormitory Function Complete Mortise Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: AM19-HTHA-26D-IC6

Choose Options Below

No one can stock every item from every vendor. We will gladly special order any item from any of the vendors we carry. Please call us for pricing and availability for that hard to find item or finish

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order non stock item with 4 week lead time
  • Complete dormitory function mortise lock.

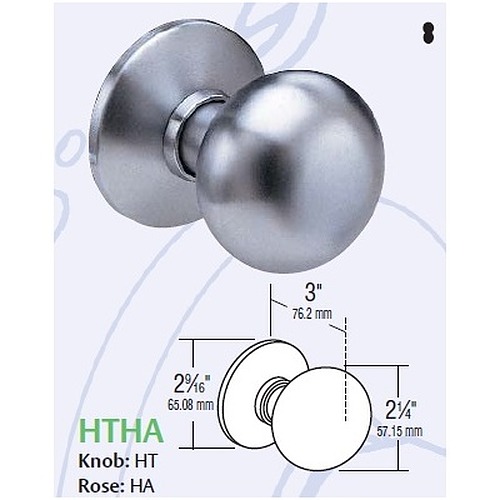

  • With HT style knob and HA rose.
  • Satin chrome finish.
  • Prepped for IC core, core not included.
  • Latchbolt operated by knob either side.
  • When outside knob is locked by projected deadbolt, (by inside turnpiece or outside key) key outside will retract deadbolt,
    then latchbolt.
  • Turning inside knob/lever will retract latchbolt and deadbolt simultaneously, which will unlock outside knob.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Door Thickness 1-3/4".
  • BHMA A156.13, Series 1000, grade 1, UL Listed.
  • Strike standard: ANSI 1-1/4" x 4-7/8", straight lip, with box.
  • Backset 2-3/4".
  • Handing Handed, field reversible without disassembling lock case.
  • Latch 3/4" throw, stainless steel.
  • Bolt 1" throw, stainless steel.
