Arrow DC516

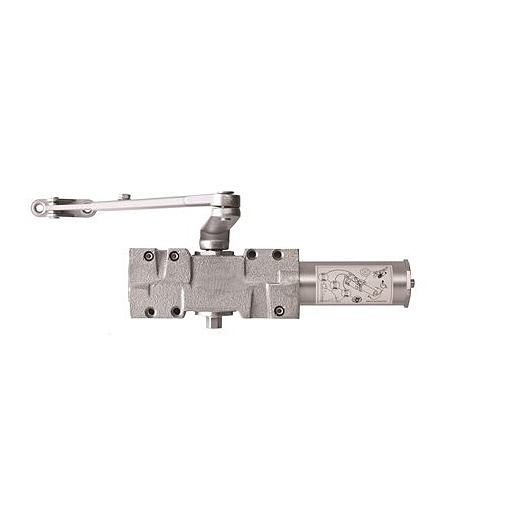

Heavy Duty Adjustable Power Door Closer

Quick Product Details

  • Adjustable Power Door Closer
  • Heavy Duty
Price: $206.00 /each

SKU: DC516

Choose Options Below

This Arrow DC516 adjustable power door closer is non-handed for regular, top jamb and parallel arm mount applications.

  • Stock Item
  • Order in the next 3 hours 45 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $206.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL- Aluminum (689) AL- Aluminum (689)
DBZ -Dark Bronze (690) DBZ -Dark Bronze (690)

Replacing Your Door Closer?

Product Finder

Overview


Quality:
  • Non-Hold Open arm with parallel arm bracket and full plastic cover.
  • UL/cUL listed.
  • UL10C listed for positive pressure to comply with UBC-72 (1997).
  • Meets the requirements of ANSI A156.4 and ANSI ICC A117.1. Grade 1
  • Meets ADA requirements (Americans with Disabilities Act).

Available Options: Choose Options Above

Product at A Glance

  • Supplied with standard non hold-open arm
  • Adjustable for spring sizes 1 through 6
  • Supplied with self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4” thick doors
  • Adjusting valves for closing speed and latch speed control
  • Includes backcheck intensity valve
  • Retrofits to  LCN 4040 closers
  • High tensile steel springs
  • Features staked valves
  • Features all temperature fluid
  • Supplied with full plastic cover (standard)
Style Adjustable Power Door Closer
Grade Heavy Duty
Handing Non-handed for regular, top jamb and parallel arm mount applications
Door Thickness 1-3/4"

More Info


Door closers provide multiple features and functions for door openings. They can control traffic, provide for fire and life safety and enable use by the disabled by following the ADA code requirements. This closer offers the flexibility of adjustable spring size. You can adjust the spring size from #1 to #6 to accommodate the needs of your opening.
