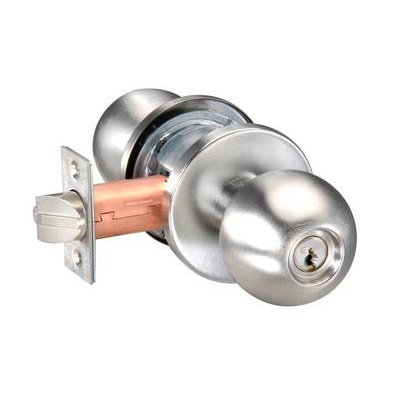

Heavy Duty Commercial Entrance Knob Lock

Product Overview

• Heavy duty cylindrical entrance key in knob lockset
• Door thickness -1-3/4" - 2".
• Meets A156.2 Series 4000, Grade 1
• 2-3/4" backset.
• Latchbolt-Brass, chrome plated, 5/8" throw with nylon insert, 2-1/4" x 1-1/8" front
• Strike-ANSI curved lip standard, 4-7/8" x 1-1/4" x 1-1/4" lip to center.
• Cylinder-6-pin, Corbin keyways-0 bitted, ready to be keyed, prepped for Corbin RC core less core,
  Prepped for Best IC core-less core, available in GRC knob and satin chrome finish only or less cylinder.

Heavy Duty Commercial Entrance Knob Lock

Technical Specifications

• Listed for A Label and lesser class single doors, 4' x 8'.
• Function - Entrance-ANSI F81.
• Deadlocking latchbolt by knob either side, except when turn button locks outside knob.
• Key outside retracts latchbolt.
• Outside knob unlocked by turn button.
• Inside knob always free.
• Meets A156.2 Series 4000, Grade 1.
• Avaliable as a special order with other finishes, and backset. Contact us directly to arrange your special order.
