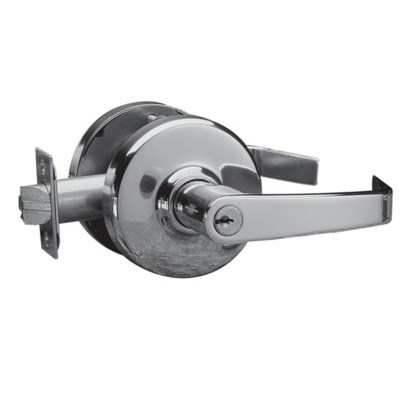

Extra Heavy Duty Commercial Cylindrical Entrance/Office Lever

Product Overview

• Extra heavy-duty commercial cylindrical entrance leverset
• Door thickness-1-3/4" - 2" standard.
• 2-3/4" backset.
• Latchbolt-stainless steel, 1/2" throw with 2-1/4" x 1-1/8" front
• Strike- ANSI curved lip standard, 4-7/8" x 1-1/4" x 1-1/4" lip.
• Cylinder-6-pin-prepped for Corbin RC core-less core, prepped for Best IC core-less core,
  available in satin chrome finish and NZD lever only.
  Corbin keyways, 0 bitted, ready to be keyed, Less cylinder.
• Anti-rotational through-bolts at 6 and 12 o’clock positions

Extra Heavy Duty Commercial Cylindrical Entrance/Office Lever

Technical Specifications

• Independent return springs prevent lever sag
• UL 3-hour fire rating for 4' x 10' door
• Function - Entrance or Office-ANSI F109.
• Deadlocking latchbolt by lever either side, except when turn button locks outside lever.
• Pushing turn button in locks outside lever, requiring use of key outside to unlock.(Lever handle is freewheeling in locked position.)
• Turning inside lever unlocks outside lever.
• Pushing in and turning button locks outside lever, requiring key at all times.
• Turning inside lever does not unlock outside lever until button is manually turned to unlocked position, Inside lever always free
• Lever Release design for vandal resistance, allowing the outside lever to rotate when locked.
• Meets A156.2 Series 4000, Grade 1.
• Meets A117.1 Accessibility Code.
• Avaliable as a special order with other finishes, lever styles and backset. Contact us directly to arrange your special order
