Corbin Russwin DC8210-A4-690

Special Order Heavy Duty Institutional Door Closer with PA Hold Open Arm

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: DC8210-A4-690

Choose Options Below

The Corbin Russwin DC8210-A5 door closer with heavy duty backstop hold open parallel arm is a perfect choice for high-use openings and doors that must meet ADA requirements. Heavy-duty construction, captured valves and a double heat-treated steel pinion makes the DC8210 perfect for high-use and high-abuse situations.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)

Overview

Special order non stock item with 4 week lead time
  • Adjustable sizes 1 through 6.
  • Push side mount.

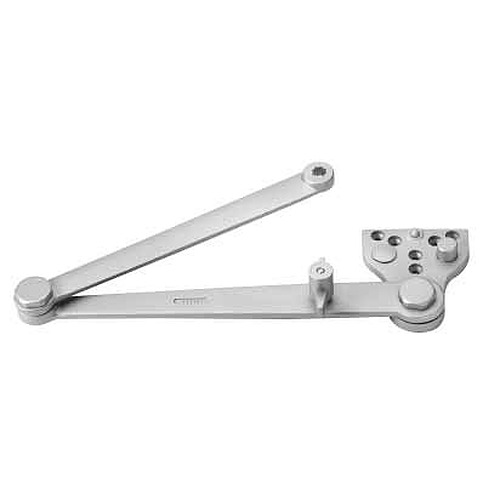

  • Heavy-Duty hold open backstop parallel arm A5, door stop/hold open range 85° to 110°.
  • Recommended for high-use, high-abuse environments.
  • Non handed, field reversible.
  • Captured valves for high-abuse situations.
  • Double heat-treated steel pinion.
  • Cast iron body.
  • Quik-Install™ Bracket Easier installation of closer body.

Available Options: Choose Options Above

More Info

  • Quik-Install bracket size: 3-5/8" vertical x 11-1/2" horizontal, hole spacing: 1" vertical x 10" horizontal.
  • Meets A156.4, Grade 1.
  • Exceeds 10 million cycles in usage.
  • UL /ULC / UL10c Listed for fire and cycle requirements.
  • Barrier-Free Code Compliance, conform to the 5 lbf. maximum door opening force.
    requirement for non-fire-rated interior hinged doors.
  • Latching speed, closing speed and backcheck valve standard.
  • Standard: high lubricity extreme temperature hydraulic fluid.
