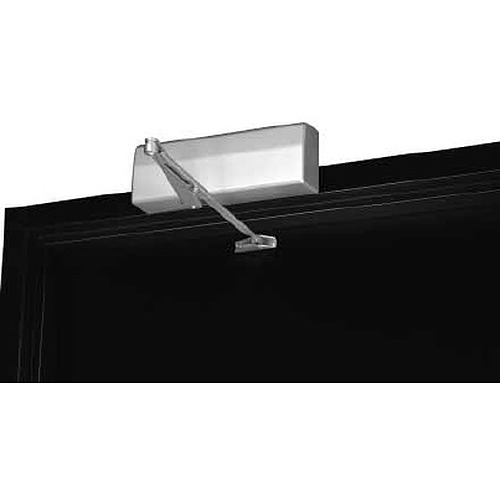

Corbin Russwin DC8220

Special Order Heavy Duty Top Jam Mount Power Adjustable Door Closer

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: DC8220

Choose Options Below

The Corbin Russwin DC8220 door closer is a perfect choice for high-use openings and doors that must meet ADA requirements. Heavy-duty construction, captured valves and a double heat-treated steel pinion makes the DC8210 perfect for high-use and high-abuse situations.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)

Overview

Special order item with 4 week lead time

  • Top jam mount.
  • Adjustable sizes 1 through 6
  • Accommodates reveals up to 3-1/4"
  • Closer is mounted on the frame on the push side, with the arm
    perpendicular to the face of the door.
  • Captured valves for high-abuse situations
  • Double heat-treated steel pinion
  • Cast iron body
  • Quik-Install™ Bracket easier installation of closer body

Available Options: Choose Options Above

More Info

  • Non-handed
  • Quik-Install bracket size: 3-5/8" vertical x 11-1/2" horizontal, hole spacing: 1" vertical x 10" horizontal
  • Meets A156.4, Grade 1.
  • UL /ULC / UL10c Listed for fire and cycle requirements.
  • Barrier-Free Code Compliance, conform to the 5 lbf. maximum door opening force
    requirement for non-fire-rated interior hinged doors
  • Latching speed, closing speed and backcheck valve standard.
  • Standard: high lubricity extreme temperature hydraulic fluid
