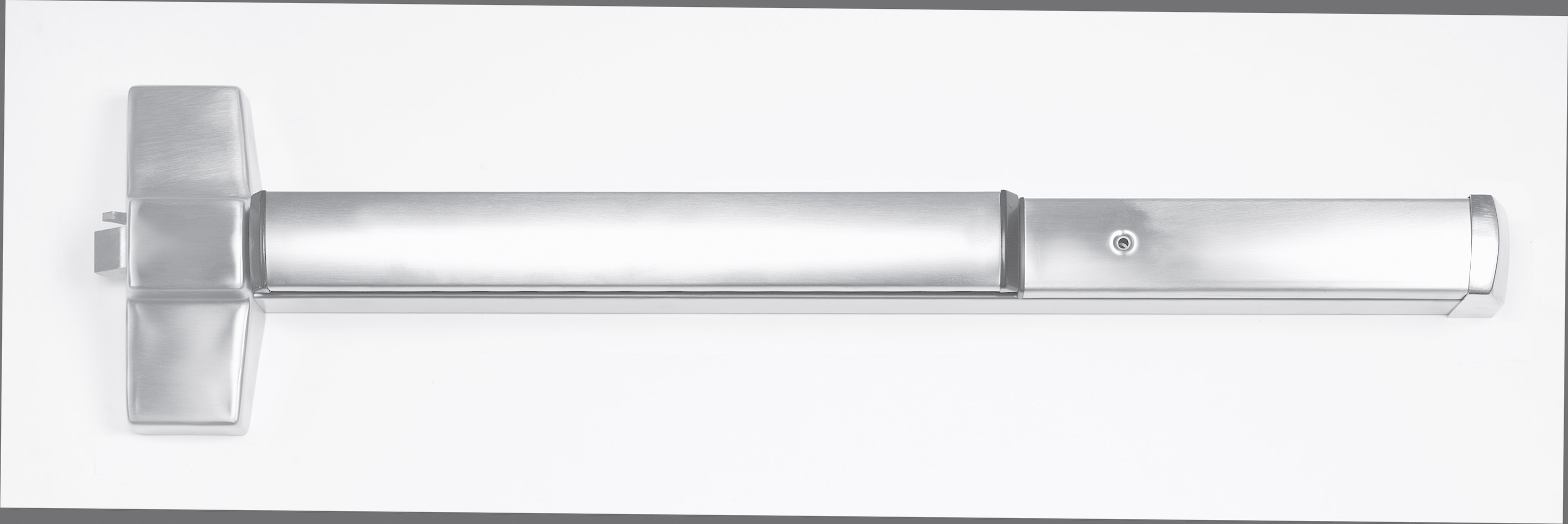

Rim Exit Device

Product Overview

• Exit Only (EO) function, trim and cylinder not included.
• For doors 1-3/4" thick standard
• Non handed
• Stile - 4-1/2" minimum width.
• Latchbolt - 3/4" throw, pullman type with stainless steel deadlocking latch
• Bar length-36" fits 30"- 36" door or 48" fits 36"- 48" door, easily field cut to size.

Rim Exit Device

Technical Specifications

• Meets ANSI Grade 1 requirements.
• All devices listed UL /cUL for safety as panic hardware.
• Available as UL Three-hour fire-rated device listed as fire exit hardware for A label and
  lesser class 4' x 8' single or 8' x 8' double doors.
• Hex key dogging standard. Dogging not available on fire rated devices.
• Strike - Surface mounted 3/8" diameter roller strike, complete with positive locking plate and shims
• Projection 3-1/4" active, 2-3/4" dogged.
