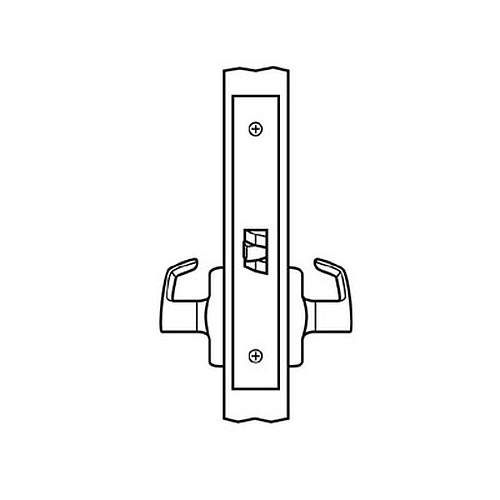

Corbin Russwin ML2010LL

Passage Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Passage Function
Price: $336.00 /each

SKU: ML2010LL

Choose Options Below

This Corbin Russwin ML2010LL is an ADA compliant, Grade 1, high quality mortise lock body. The passage function allows for immediate egress at all times using the inside and outside levers. Corbin Russwin offers a ten-year limited warranty for all ML2000 series products.

  • Stock Item
  • Order in the next 1 hour 24 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $336.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin chrome 626 Satin chrome
625 Polished Chrome 625 Polished Chrome
605 Polished Brass 605 Polished Brass
613 Dark Bronze 613 Dark Bronze

Overview


Quality and Safety:
  • Meets ANSI/BHMA A156.3 series 1000 Grade 1 operational and security requirements
  • Complies with ADA - Americans with Disabilities Act
  • 10 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Includes lock body, armored front, strike and screw pack
  • Lever and rose not included.
  • This body works with a lever
Style Mortise lock body
Function Passage Function:
- Outside and inside levers are always free
- ANSI F01
Handing Field reversible
Door Thickness 1-3/4"
Body Dimensions 5-7/8" x 4" x 15/16"
Backset 2-3/4"
Strike ANSI standard 4-7/8" - 1-1/4" straight lip
Outside Front Plate 8" x 1-1/4" - accommodates flat doors and doors that are beveled 1/8"

More Info


Mortise locks are locks that require a pocket cut out in the door to place the mechanism. This lock is most often used in commercial constructions. This package consists of a lock body, an armored front, a strike and a screw pack. For a complete installation, a trim for the door is also necessary and should be selected from our many options.
