Corbin Russwin ML2057-MSL-613E

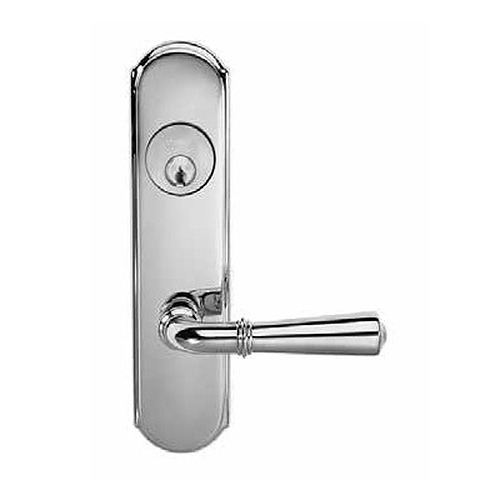

Special Order Complete Storeroom Function Mortise Lock with Merlot Lever and L Escutcheon

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ML2057-MSL-613E

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The Corbin ML2057-MSL storeroom function, Latchbolt by lever inside or by key outside. Outside lever always locked. Inside lever always free.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever style:

PSA-Princeton lever with PSA-Princeton lever with "A" rose
NSA-Newport  lever with NSA-Newport lever with "A" rose
ASA-Armstrong lever with ASA-Armstrong lever with "A" rose

Help Me Decide

"A"style rose has a diameter of 2-1/4"

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Special order non stock item with 4 week lead time
  • With "L" style Escutcheon and  Merlot lever (MS)
  • Storeroom function, Latchbolt by lever inside or by key outside.
  • Outside lever always locked.
  • Inside lever always free.
  • 1-1/8" mortise cylinder included, L4 keyway.
  • Dark bronze equivalent-613E finish.
  • Lock are furnished right hand, quick reversible. The lockset can be re-handed without disassembling the lock case.


Available Options: Choose Options Above

  • Lever style: info icon

    • PSA-Princeton lever with "A" rose
    • NSA-Newport lever with "A" rose
    • ASA-Armstrong lever with "A" rose
  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

More Info

  • Backset- 2-3⁄4".
  • Body, 5-7/8" x 4" x 15/16".
  • ADA-complies with American Disability Act.
  • Strike-ANSI Standard A115.1; 4-7⁄8" high, 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4", accommodates flat doors and doors beveled 1/8".
  • ANSI- Meets A156.13 Series 1000, Operational and Security Grade 1.
