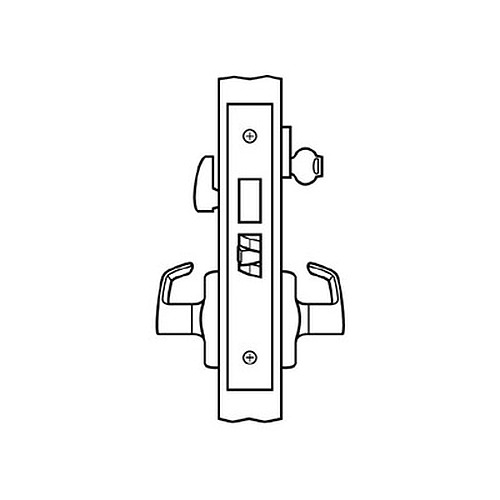

Corbin Russwin ML2065LL

Dormitory or Entrance Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Dormitory/Entrance Function
Price: $389.00 /each

SKU: ML2065LL

Choose Options Below

This Corbin Russwin ML2065LL is a dormitory/entrance function mortise lock body that meets ANSI/BHMA A156.3 series 1000 Grade 1 operational and security requirements and complies with the Americans with Disabilities Act (ADA).

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $389.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 Satin chrome 626 Satin chrome
625 Polished Chrome 625 Polished Chrome
605 Polished Brass 605 Polished Brass
613 Dark Bronze 613 Dark Bronze

Overview


Quality and Safety:
  • Meets ANSI/BHMA A156.3 series 1000 Grade 1 operational and security requirements
  • Complies with ADA - Americans with Disabilities Act
  • 10 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Includes lock body, armored front, strike and screw pack
  • Levers and 1-1/8” mortise cylinder are not included
  • This body works with lever trim
Style Mortise lock body
Function Dormitory/Entrance Function:
- Latch bolt operable by either lever unless deadbolt is projected
- Deadbolt is projected and retracted with key on the outside or by thumbturn inside
- Inside lever simultaneously retracts deadbolt and latchbolt and unlocks outside lever
- Inside lever is always free
- ANSI F13
Handing Field reversible
Door Thickness 1-3/4"
Backset 2-3/4"
Body Dimensions 5-7/8" x 4" x 15/16"
Strike ANSI standard 4-7/8" - 1-1/4" straight lip
Outside Front Plate 8" x 1-1/4" - accommodates flat doors and doors that are beveled 1/8"

More Info


Every application has its own individual set of factors that will determine what kind of lock and function are necessary for that doorway. Corbin Russwin therefore offers a large selection of functions to choose from to perfectly suit your applications needs. This lock is set with the dormitory/entrance function that operates with a deadbolt.
