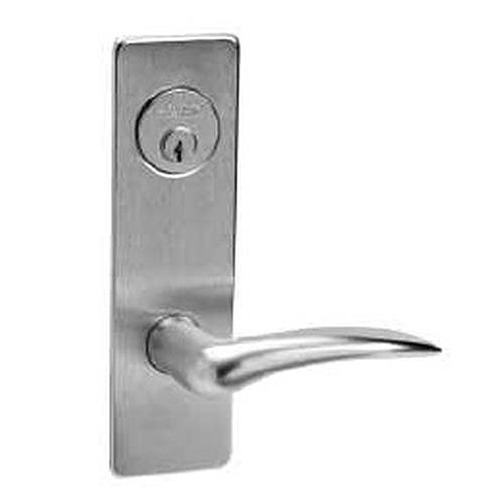

Corbin Russwin ML2067-DSM-626

Special Order Complete Apartment Fuction Mortise Lock with Lever

SKU: ML2067-DSM-626

Price: $592.00

Special Order non-stock item Requires 4 week lead time

Choose Options Below

  • New installations with Mortise locks without deadbolt or cylindrical locks on single door, hollow metal frame applications.
  • Designed to replace Von Duprin 3140 or Folger Adam 712.
  • Stainless Steel Construction
  • Accepts 3⁄4" Throw Latchbolt
  • Non-handed
  • Fail Secure standard, Fail Safe optional
  • Horizontally Adjustable
  • Plug Connectors
  • Furnished 24VDC standard with 12VDC available. AC operation optional with SO12 or SO24 rectifier kits
  • For Von Duprin 6211DS choose Dual Switch Monitoring
See more product information below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $592.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding?

Help Me Decide

  • Cylindrical lock compatibility, latch throw - Baldwin 1⁄2" – 3⁄4", Best 3⁄8" – 3⁄4", Corbin 1⁄2" – 3⁄4", Falcon 1⁄2" – 3⁄4" , Russwin 1⁄2" – 3⁄4", Sargent 1⁄2" – 3⁄4", Schlage 3⁄8" – 3⁄4", Yale 1⁄2" – 3⁄4", Note: Signalling may not function when using 3⁄8" throw bolt, Deadlocking cannot be guaranteed with all locks.
  • Mortise Lock compatibility - Von Duprin 7500, Adams Rite 4510, 4710, Baldwin 6000, Best 24H, 30H, Corbin 9000, Falcon M2300, M2500, M2600,M3300, M3500, M3600, Russwin Mortise, Sargent 7700, 8100, 9000, Schlage L9000, K30, K40, K50, K60, Yale 7030, 7130, 8600, 8700
  • Strikes meet the requirements of ANSI 156.5, Grade 1, 1992.
  • UL Listed Burglary-Resistant and Electric Strike for fire doors and frames.   A label for single doors and B label for double doors .
  • 1500 lbs. holding strength.
  • 70 lbs. impact strength.
  • Electric Strikes are furnished standard in US32D when finish is not specified
  • For 16VAC Current, use SO-24 Rectifier Kit.
Available as a special order in other finishes. Call us directly to arrange your special order.

Overview

Special order item with 4 week lead time

  • Apartment or Dormitory function.
  • Latchbolt by grip either side, unless outside grip is locked by toggle-action stop or by projection of deadbolt.
  • Deadbolt thrown or retracted by key outside or by thumbturn grip inside
  • Inside grip simultaneously retracts latchbolt and deadbolt; outside grip remains locked.
  • Auxiliary latch deadlocks latchbolt.
  • Outside grip unlocked by toggle-action stop.
    Note: Occupancy Indicator shows deadbolt position only
  • Satin chrome finish

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)
  • For 1-3/4" thick door standard
  • 2-3/4" back set.
