Corbin Russwin ML2067LL Apartment or Dormitory Mortise Lock Body

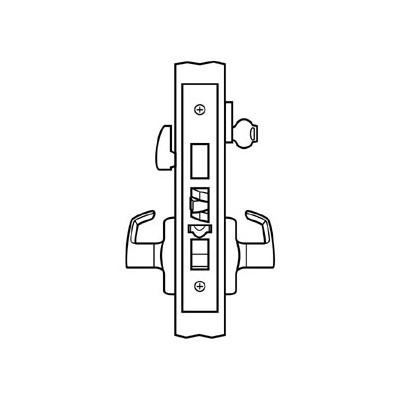

Apartment or Dormitory Mortise Lock Body Photo

Corbin Russwin ML2067LL Apartment or Dormitory Mortise Lock Body

SKU: ML2067LL The Corbin Russwin ML2067LL is a grade 1 Apartment or Dormitory mortise lock body designed to meet the rigors of high traffic commercial, institutional, industrial and government applications.This body works with lever trim.

Overview
Tech Specs

Instructions & Templates

Apartment or Dormitory Mortise Lock Body

Serial no. / SKU: ML2067LL

Product Overview

Includes lock body, armored front, strike and screw pack.
For doors 1-3⁄4" thick standard.
Backset 2-3⁄4" only.
Handing - easily field reversible
Trim and 1-1/8" mortise cylinder not included.
This body works with lever trim.

Apartment or Dormitory Mortise Lock Body

Serial no. / SKU: ML2067LL

Technical Specifications

Ansi F20-2067-Apartment or Dormitory
Latchbolt by grip either side, unless outside grip is locked by toggle-action stop or by projection of deadbolt.
Deadbolt thrown or retracted by key outside or by thumbturn grip inside.
Inside grip simultaneously retracts latchbolt and deadbolt; outside grip remains locked.
Auxiliary latch deadlocks latchbolt.
Outside grip unlocked by toggle-action stop.
Lock body-5-7/8" x 4" x 15/16".
Strike-ANSI Standard 4-7⁄8", 1-1/4" straight lip.
Outside front plate-8" x 1-1⁄4", accommodates flat doors and doors beveled 1/8" in 2".
ANSI - Meets A156.13 Series 1000, Operational and Security Grade 1.
