Detex EAX-500

Surface Mounted Exit Alarm

SKU: EAX-500

Price: $127.00

Choose Options Below

Exit alarms are designed for applications requiring an alarmed exit on secured doors. The Detex EAX-500 is a self-contained door alarm that sounds to warn of a unauthorized use of a emergency exit or restricted door. Fits 2" narrow stile doors. See more product information below

  • In Stock!
  • Order in the next 31 hours 3 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $127.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder 1-1/8" Mortise:

Help Me Decide

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.




  • Surface door mount only.
  • Fits 2" narrow stile doors
  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm. Not included.
  • Rim cylinder required for outside alarm control.
  • Alarm can only be silenced by key.
  • 9 VDC battery powered with Low Battery Alert.
  • LED visual arming indicators.
  • Includes red "Emergency Exit - Alarm will Sound" stick-on decal for the door.
  • Grey finish

Available Options: Choose Options Above

  • Cylinder 1-1/8" Mortise: info icon

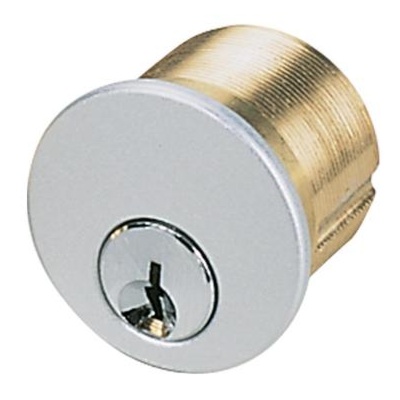

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed

Tech Specs

  • Alarm accepts 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale cam. Cylinders not included
  • Extended bypass allows alarm to remain bypassed when
    door is open and automatically rearm upon door closing.
  • Approximate 100dB piezo alarm.
  • Mortise cylinder key switch arming.
  • Manual arming, disarming & rearming.
  • Audible arming indicators.
  • Field selectable 2-minute auto rearm.
  • Field selectable status indicators.
  • In-swinging door applications might require use of inswinging kit.(#102644 )



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Surface Mounted Exit Alarm
