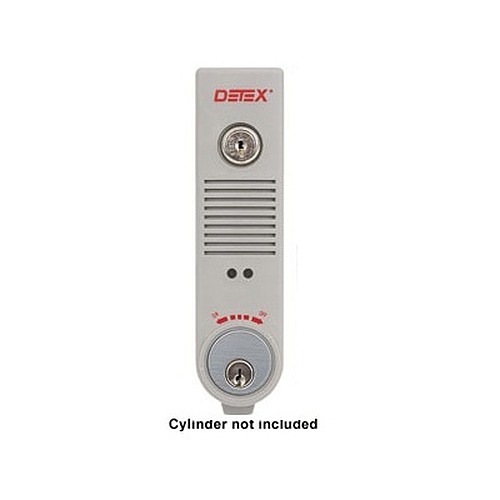

Detex EAX-500SK1

Special Order Surface Mounted Exit Alarm with MS-1039S Magnetic Switch


Price: $166.00

Special Order non-stock item Requires 4 week lead time

Choose Options Below

No one can stock every item from every vendor. We will gladly special order any item from any of the vendors we carry. Please call us for pricing and availability for that hard to find item or finish See more product information below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $166.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder 1-1/8" Mortise:

Help Me Decide

  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm
  • Mortise cylinder includes 2 keys.




Special order item with 3 week lead item.

  • Surface door mount only.
  • With MS-1039S Magnetic Switch, surface mount, white, closed contacts.
  • Fits 2" narrow stile doors
  • 1-1/8" Mortise cylinder required with standard Yale cam to arm/disarm alarm. Not included.
  • Alarm can only be silenced by key.
  • 9 VDC battery powered with Low Battery Alert.
  • LED visual arming indicators.
  • Grey finish

Available Options: Choose Options Above

  • Cylinder 1-1/8" Mortise: info icon

    • 1-1/8" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise Cylinder needed

Tech Specs

  • Alarm accepts 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale cam. Cylinders not included
  • Extended bypass allows alarm to remain bypassed when
    door is open and automatically rearm upon door closing.
  • Approximate 100dB piezo alarm.
  • Mortise cylinder key switch arming.
  • Manual arming, disarming & rearming.
  • Audible arming indicators.
  • Field selectable 2-minute auto rearm.
  • Field selectable status indicators.
  • In-swinging door applications might require use of inswinging kit.(#102644 )



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Special Order Surface Mounted Exit Alarm with MS-1039S Magnetic Switch
