Detex FV40-EM-628

Special Order Fire Rated Delayed Egress Magnetic Locking Exit Device

SKU: FV40-EM-628

Price: $1,228.00

Special Order non-stock item Requires 4 week lead time

Choose Options Below

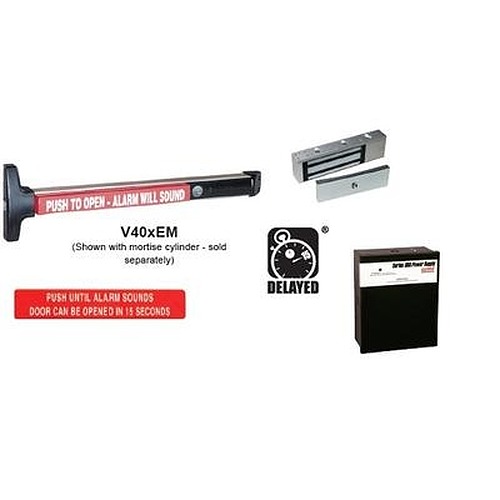

The FV40xEM, designed for primary and secondary exits, provides a secure 15-second delay and a 100 decibel alarm when someone attempts to exit. This is a fire rated device. See more product information below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $1,228.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:


Special order item with 4 week lead time
  • UL  3 Hour Fire Rated.
  • 2 point locking provides tandem holding force of (1400 lb.) latch
    bolt and (1500 lb.) electromagnetic lock
  • The V40xEM, designed for primary and secondary exits, provides a secure 15-second delay and a 100dB alarm when someone attempts to exit.
  • This 15-second delay allows management time to respond before someone exits and the alarm deters the exit from occurring.
  • Per life safety requirements, the V40xEM must be provided with a fire alarm input, thus providing a system override during a fire emergency.
  • The V40xEM provides security while meeting all life safety concerns, offering an exceptional value.
  • Requires a 1-1/8" mortise cylinder, not included.
  • For a 36" wide door.

Available Options: Choose Options Above

Tech Specs

Standard Package Includes:
  • 15 second Delayed Egress with dead latch monitoring.
  • 24V Filtered and Regulated Power Supply with simplified fire loop connections. (NOTE: Detex Power Supply required and included with standard EM Package)
  •  Dogging  not available with Fire Rated device.
  • Magnetic Lock.
  • Delayed Egress Door Sign (ECL-395 English, 15 seconds, Red).
  • Flexible 3' Conduit Loop and End Cap Connector.
  • Push Pad Signage "Push to Open Alarm Will Sound"
