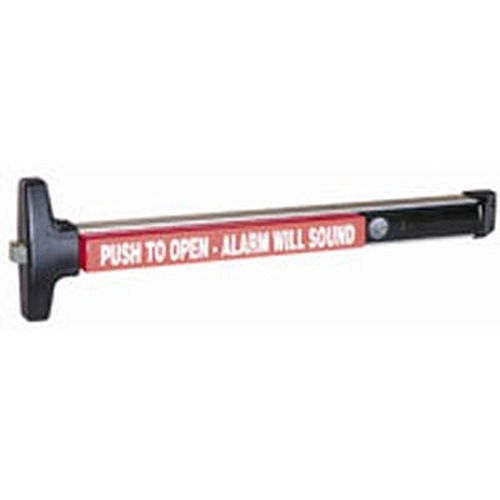

Detex V40-EH-LBM

Special Order Alarmed Rim Exit Device - Hard Wired with Latch Bolt Monitoring

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: V40-EH-LBM

Choose Options Below

Detex V40-EH-LBM hard wired Alarmed rim exit device with Latch Bolt Monitoring. Designed for primary and secondary exits that require an alarmed panic device. Alarm will sound when someone attempts to exit,alerting management to the unauthorized exit. Fits standard 1-3/4" - 2-1/4" thick wood, hollow metal, fiberglass or aluminum doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

628- Clear Anodized Aluminum 628- Clear Anodized Aluminum
711-Black + $10.00 711-Black +$10.00

Overview

special order item with 4 week lead time

  • Hardwired alarmed rim exit device with LBM, Latch Bolt Monitoring.
  • Fits standard 1-3/4" - 2-1/4" thick doors.
  • For 36" wide door.
  • Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
  • Standard Package Includes:
    - Switch Monitors Push Pad
    - Cylinder Dogging (CD) standard except for “F” (Fire Rated) device
    - 120V to 12VAC Transformer and 9V Battery Backup
    - Flexible 3’ Conduit Loop and End Cap Connector
    - Push Pad Signage “Push to Open Alarm Will Sound”
  • 1-1/8" Mortise Cylinder with a standard Yale Cam to Arm / Disarm & Dog / Un-dog (Not included)



Available Options: Choose Options Above

More Info

  • Tamper-resistant housing protects electronics, battery and internal hardware
  • Accommodates 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale Cam.
  • Covers a 161 door prep
  • Non-handed
  • Field sizeable
  • Visual and audible low-battery alert
  • Visual and audible arming indicators
  • NS Narrow stile door option - Fits 2" narrow stile doors with
    Narrow Stile Door Kit (#NSK sold separately)
  • Angled end cap to deflect damage
  • Tamper-resistant security switching electronically monitors latch bolt
  • Adjustable 2 min. re-arming feature for auto re-arm
  • Armed/Disarmed status indicator is field selectable
  • Delayed arming feature for arming after door closed
  • Exterior of anodized aluminum and damage and corrosion resistant ABS
