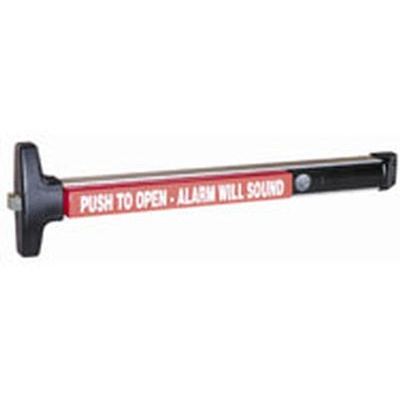

Detex V40-EH Special Order Alarmed Rim Exit Device

Special Order Alarmed Rim Exit Device - HardWired Photo

Detex V40-EH Special Order Alarmed Rim Exit Device - HardWired

This product is non-returnable! SKU: V40-EH No one can stock every item from every vendor. We will gladly special order any item from any of the vendors we carry. Please call us for pricing and availability for that hard to find item or finish..

Overview
Tech Specs

Instructions & Templates

Special Order Alarmed Rim Exit Device - HardWired

Serial no. / SKU: V40-EH

Product Overview

Special order item with 3 week lead time
Fits standard 1-3/4" - 2-1/4" thick doors.
Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
Standard Package Includes:
- Switch Monitors Push Pad
- Cylinder Dogging (CD) standard except for “F” (Fire Rated) device
- 120V to 12VAC Transformer and 9V Battery Backup
- Flexible 3’ Conduit Loop and End Cap Connector
- Push Pad Signage “Push to Open Alarm Will Sound”
Single 1-1/8" Mortise Cylinder with a standard Yale Cam to Arm / Disarm & Dog / Un-dog (Not included)
Standard rim cylinder required for exterior access (Not included)

Special Order Alarmed Rim Exit Device - HardWired

Serial no. / SKU: V40-EH

Technical Specifications

Tamper-resistant housing protects electronics, battery and internal hardware
Accommodates 5, 6 and 7 pin standard and interchangeable core mortise cylinders with a standard Yale Cam.
Covers a 161 door prep
Non-handed
Field sizeable
Visual and audible low-battery alert
Visual and audible arming indicators
NS Narrow stile door option - Fits 2" narrow stile doors with
Narrow Stile Door Kit (#NSK sold separately)
Angled end cap to deflect damage
Tamper-resistant security switching electronically monitors latch bolt
Adjustable 2 min. re-arming feature for auto re-arm
Armed/Disarmed status indicator is field selectable
Delayed arming feature for arming after door closed
Exterior of anodized aluminum and damage and corrosion resistant ABS
