Dorma BTS80-Kit I Complete Independently Hung on Hinges-Floor Closer

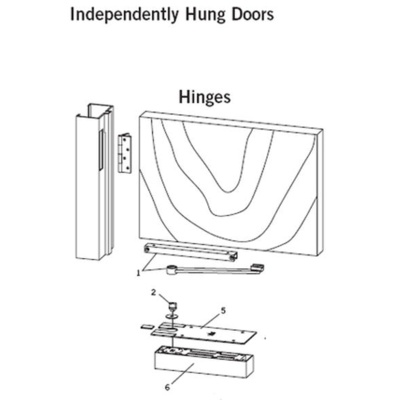

SKU: BTS80-Kit I Complete - Includes All Components or Customize Below The Dorma BTS80 floor closerÕs compact body permits its use where a larger closer would be prohibitive. Versatility allows installation in thin slab concrete subfloor construction. The BTS80 can control exceptionally heavy single- and double-acting doors. The Dorma BTS80-KIT I for Independently Hung doors on 4-1/2" butt Hinges. Complete closer packages can include everything that you need for a new installation

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
Slide Arm

Product Overview

  • Drop forged steel with nylon slide block, cover washer and anodized aluminum channel.
  • For independently hung installations.
  • For BTS series closers.

Technical Specifications

    Available as a special order with other finishes.Contact us directly to arrange for your special order.
Floor Plate

Product Overview

  • BTS80 universal Floor plate.
  • For left hand/right hand, 3/4" offset, 1-1/2" offset, and center pivoted doors
  • 4-1/8 "wide x 14-3/32" long

Technical Specifications

  • Available as a special order with other finishes. Contact us directly to arrange for your special order.
BTS80 Body and Cement Case

Product Overview

  • Floor Closer body with cement case, less spindle
  • Compact closer body and cement case 2-3/8" deep suited for thin slab concrete construction.
  • Spring Size 2 or 3
  • For center hung or offset applications
  • For doors weighing up to 660 pounds
  • Size 2, Exterior doors 2'6"-3'6" wide,
    Interior doors, 2'6"- 4'0" wide
  • Size 3, Exterior doors 3'6"- 4'0" wide,
    Interior doors, 4'0"- 4'6" wide
  • For both single and double-acting doors

Technical Specifications

  • Non Handed
  • Dual valves for sweep and latch adjustment
  • Selectable delayed action
  • Selectable multipoint hold open
  • Pressure relief valve protects closer from damage caused by forced closing.
  • Interchangeable spindles available to provide bottom door clearances ranging from 5/16" to 2-5/16".  3° Pre Load Interchangeable spindles also available.
  • BTS80 BFE(Barrier Free) maximum width exterior door-3'0"
  • Closer adjustment in cement case provides lateral
    and longitudinal adjustment of 1/4" and height adjustment of 5/32".
  • Mechanical backcheck at approximately 70º.
  • Selectable delayed action between 175º and 75º.
  • Selectable multipoint hold open between approximately 75º and 175º.
  • Delayed action is functional when hold open is not engaged.
  • Certified to the requirements of ANSI A156.4 for grade 1 closers.
  • The BTS80 BFE meets the opening force requirements of ANSI A117.1 for exterior Barrier-Free accessibility.
  • Barrier Free not available with backcheck
