Dorma BTS80-Kit L Complete 3/4" Offset Lead-Lined Doors

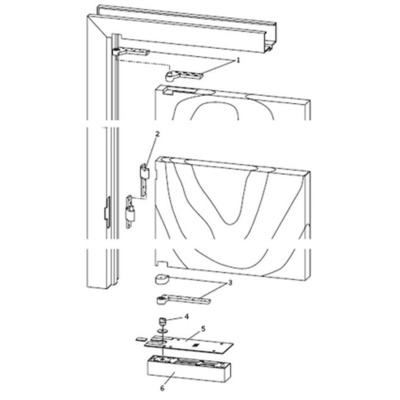

SKU: BTS80-Kit L Complete - Includes All Components or Customize Below The Dorma BTS80 floor closerÕs compact body permits its use where a larger closer would be prohibitive. Versatility allows installation in thin slab concrete subfloor construction. The BTS80 can control exceptionally heavy single- and double-acting doors. The Dorma BTS80-KIT L for 3/4" Offset Lead-Lined Doors. Complete closer packages can include everything that you need for a new installation

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
Top Pivot

Product Overview

  • 3/4" Offset Full mortise top pivot for 1-3/4" thick lead-lined doors
  • The hole pattern in the pivot is staggered to straddle the lead in the center of the door.

Technical Specifications

  • Can also be used on non lead-lined extra heavy or thick doors.
  • Standard with all machine screws
  • Pivot standard design includes needle bearings with hardened pins for durability and long life

    Available to accommodate door thicknesses of 2", 2-1/4", 2-1/2", or 3" and different finishes then shown as a special order. Contact us directly to arrange for your special order.

Optional Intermediate Pivot

Product Overview

    3/4" offset intermediate pivot for leadlined 1-3/4" thick doors .
  • Full Mortise
  • Handed

Technical Specifications

  • Can also be used on non lead-lined doors, extra heavy or thick doors.
  • Furnished standard with machine screws
    Available to accommodate door thicknesses of 2", 2-1/4", 2-1/2", or 3" and different finishes than shown.
    Contact us directly to arrange for your special order.
Bottom Arm

Product Overview

  • 3/4" offset bottom arm for lead-lined 1-3/4" doors
  • 626 finish

Technical Specifications

  • Screw holes designed to straddle lead in the middle of the door.
  • Can also be used on fire doors rated up to 3 hours
  • Can be use with 7471K and 7471HD floor bearing.

Available as a special order for doors 2", 2-1/4", 2-1/2" and 3" thick and in other finishes.
Floor Plate

Product Overview

  • BTS80 universal Floor plate.
  • For left hand/right hand, 3/4" offset, 1-1/2" offset, and center pivoted doors
  • 4-1/8 "wide x 14-3/32" long

Technical Specifications

  • Available as a special order with other finishes. Contact us directly to arrange for your special order.
BTS80 Body and Cement Case

Product Overview

  • Floor Closer body with cement case, less spindle
  • Compact closer body and cement case 2-3/8" deep suited for thin slab concrete construction.
  • Spring Size 2 or 3
  • For center hung or offset applications
  • For doors weighing up to 660 pounds
  • Size 2, Exterior doors 2'6"-3'6" wide,
    Interior doors, 2'6"- 4'0" wide
  • Size 3, Exterior doors 3'6"- 4'0" wide,
    Interior doors, 4'0"- 4'6" wide
  • For both single and double-acting doors

Technical Specifications

  • Non Handed
  • Dual valves for sweep and latch adjustment
  • Selectable delayed action
  • Selectable multipoint hold open
  • Pressure relief valve protects closer from damage caused by forced closing.
  • Interchangeable spindles available to provide bottom door clearances ranging from 5/16" to 2-5/16".  3° Pre Load Interchangeable spindles also available.
  • BTS80 BFE(Barrier Free) maximum width exterior door-3'0"
  • Closer adjustment in cement case provides lateral
    and longitudinal adjustment of 1/4" and height adjustment of 5/32".
  • Mechanical backcheck at approximately 70º.
  • Selectable delayed action between 175º and 75º.
  • Selectable multipoint hold open between approximately 75º and 175º.
  • Delayed action is functional when hold open is not engaged.
  • Certified to the requirements of ANSI A156.4 for grade 1 closers.
  • The BTS80 BFE meets the opening force requirements of ANSI A117.1 for exterior Barrier-Free accessibility.
  • Barrier Free not available with backcheck
