Dorma RTS88-Kit 07 Center Hung End Load, Aluminum Door and Frame - 1" Top Rail, Complete Overhead Closer

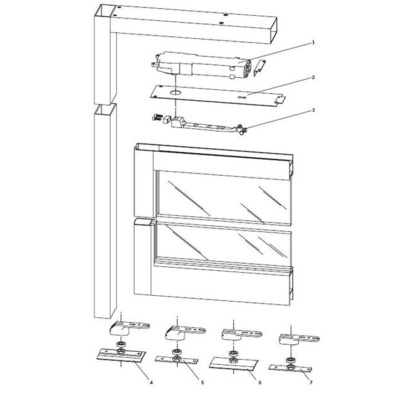

SKU: RTS88-Kit 07 - Includes All Components or Customize Below Dorma RTS88-kit 07 complete center hung overhead closer kit. Interior or exterior double or single-acting aluminum door and frame with 1" top rail. Package includes closer body, end load top arm, cover plate and floor pivot. Complete closer packages can include everything that you need for a new installation. Maximum door weight of 250 lbs.

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
RTS88 Closer

Product Overview

  • Designed to fit into headers as small as 1-3/4" x 4" for aluminum frames and is also adaptable to wood and hollow metal frames.
  • Maximum door weight of 250 lb.
  • Maximum exterior doors width up to a 3'-6" and interior doors up to a maximum 4' width.
  • For both single-acting or double-acting doors.
  • Hold open is available at 90º or 105º. Size 2 is available for 90º opening swing or deadstop/hold open only

Technical Specifications

  • Closer body is non-handed
  • Mechanical backcheck
  • Closer body available in spring size 2, 3 or 4
  • Always use an auxiliary stop in conjunction with RTS88 installations.
  • Pressure relief valve protects the closer from abuse due to forced closing
  • RTS88 BFE will meet barrier-free requirements on 3'-0" wide center hung single or double-acting doors
  • RTS88 BFE available only in size 3 105º NHO or HO only
  • An integral positive stop limits door swing to 90º or 105º.
    An auxiliary stop should always be installed in conjunction with RTS88.
  • Closing speeds are controlled by two adjustment valves.
    Sweep area is from 105º to 20º. Latch area is from 20º to 0º.
  • Mounting brackets are included to install closer into aluminum or wood headers
  • Optional extended spindle available in 3/16" integral length or 1- 5/16" add-on length[8521E].
Cover Plate

Product Overview

  • Aluminum cover plate for RTS Series closer when installed in aluminum header
  • 15-23/32" L x 3-31/32" W

Technical Specifications

There are no technical specifications for this product.
End Load Top Arm

Product Overview

  • For RTS88 - Top arm end load for aluminum or tempered glass doors with a 1" top door rail channel depth

Technical Specifications

There are no technical specifications for this product.
Tall Threshold Pivot (Kit 07)

Product Overview

  • For RTS88-Adjustable end load threshold pivot
  • For bottom door channel depth of 1-9/16".
  • Bottom door clearance is adjustable from 3/16" to 7/16".
  • Maximum weight capacity is 200 lb.

Technical Specifications

There are no technical specifications for this product.
Tall Floor Pivot (Kit 08)

Product Overview

  • For RTS88, Adjustable end load floor pivot
  • For bottom door rail channel depth of 1-9/16".
  • Bottom door clearance is adjustable from 1/4" to 1/2".
  • Maximum weight capacity is 200 lb.

Technical Specifications

There are no technical specifications for this product.
Short Threshold Pivot (Kit 09)

Product Overview

  • For RTS88, Adjustable end load threshold pivot
  • For bottom door rail channel depth of 7/8".
  • Bottom door clearance is adjustable from 3/16" to 7/16".
  • Maximum weight capacity is 200 lb.

Technical Specifications

There are no technical specifications for this product.
Short Floor Pivot (Kit 10)

Product Overview

  • For RTS88
  • For bottom door rail channel depth of 7/8".
  • Bottom door clearance is adjustable from 3/8" to 5/8".
  • Maximum weight capacity is 200 lb.

Technical Specifications

There are no technical specifications for this product.
