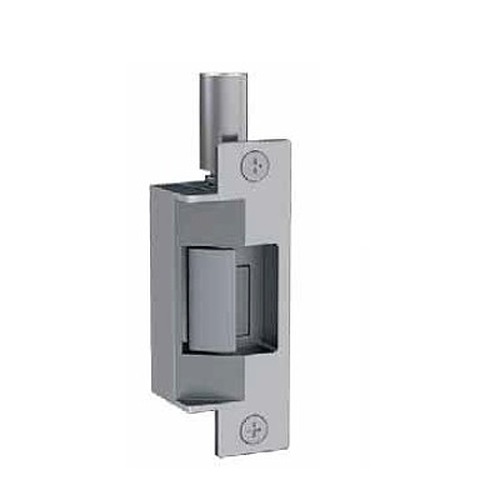

Folger Adam 712-24VDC-LBMLCM

Special Order Heavy Duty Electric Strike with LBMLCM

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 712-24VDC-LBMLCM

Choose Options Below

The Folger Adam 712-32D-LBMLCM is a industrial electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes. For use with 1/2" to 5/8" throw latchbolts in hollow metal frame applications

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Stainless Steel 630 Satin Stainless Steel 630
Satin Brass 606 + $55.00 Satin Brass 606 +$55.00

Overview

Special order non stock item with 4 week lead time
  • For use with cylindrical locks and mortise locks with out a deadbolt with 1/2" to 5/8" throw latch bolts in hollow metal frame applications.
  • Fail secure-requires power to be applied to unlock the strike lip. On loss of power, the strike is locked.
  • 24VDC.
  • LBMLCM - latchbolt & locking cam monitor,detects position of latchbolt in pocket and monitors internal strike mechanism to tell if
    strike is in locked or unlocked position.
  • UL 10C, 3 hour fire-rated (fail secure only).
  • Non-handed
  • Tamper resistant, heavy-duty construction.
  • Constructed entirely of stainless steel for strength and corrosion resistance.
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance rating 500,000 cycle.
  • In-frame horizontal adjustability.

Available Options: Choose Options Above

More Info

  • .15 Amps @ 24VDC continuous duty.
  • .29 Amps @ 12VDC continuous duty.
  • UL1034, burglary-resistant listed.
  • ANSI/BHMA A156.31, Grade 1.
