Ives 7255-SET-26D

Special Order Center Hung Pivot Set

Quick Product Details

  • Pivot Set
  • Center-Hung
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 7255-SET-26D

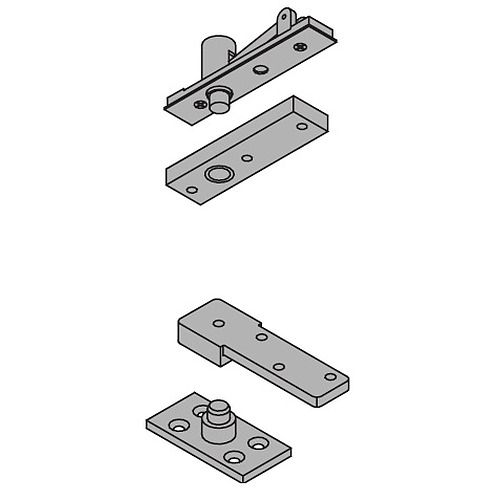

This Ives 7255-SET is a center hung pivot set for doors weighing up to 500lbs. A top and bottom pivot are included in this set.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time

Product at A Glance

  • The pivot point gets centered in the thickness of the door.
  • Features a radius stop to clear the heel of the door edge.
  • All center hung pivot sets are double acting unless stopped by some means on the door frame.
  • Positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.
  • Vertical adjustment range is 3/16", with positive locking.
  • Stainless steel machine screws and wood screws are included.
  • Top pivot is mounted in the header of the door.
  • Bottom pivot mounts directly to the floor.
  • Clearance from the bottom edge of the door to the floor mounting surface is adjustable from 3/16" to 3/4" by varying the depth of the mortise in the bottom of the door.
Style Pivot Set
Application Center-Hung
Handing Non-handed
Door Thickness Minimum 1-3/4"
Door Weight 500 lbs.
Finish Satin Chrome
