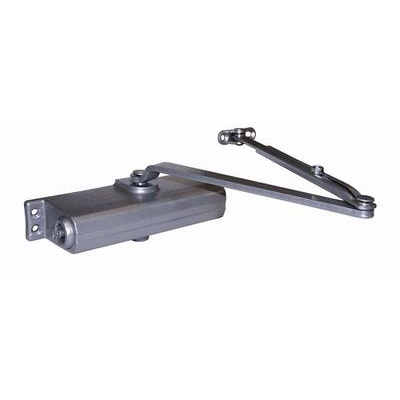

LCN 1261 Rw/PA Adjustable Cast Iron Closer

SKU: 1261 Rw/PA LCN 1261 low profile compact adjustable Closer. The 1261 has adjustable spring size 1-5 and mounts to the most common commercial footprint 3/4" x 9 1/16".

  • Instructions & Templates

Adjustable Cast Iron Closer

Serial no. / SKU: 1261 Rw/PA

Product Overview

  • Cast iron cylinder
  • Adjustable spring size 1-5 and is shipped at size 3. Parallel arm mount adjustable size 1 to 4.
  • Closer mounts hinge side (pull side), top jamb (push side) and parallel arm with PA bracket ( push side) on either right or left swinging doors.
  • For interior doors to 4’6” and exterior doors to 3’6”.

Adjustable Cast Iron Closer

Serial no. / SKU: 1261 Rw/PA

Technical Specifications

  • Latch, Sweep, and Back Check adjustments
  • ANSI Standard A156.4, grade one.
  • UL listed for self-closing doors without hold-open
  • UL10C compliant for positive pressure
  • Mounting holes spaced 3/4" vertically and 9-1/16" horizontally
  • 1260 series closer shipped  with regular arm,  shaft cover, and self reaming and tapping screws and Pa bracket
