LCN 1461-Rw/PA-693

Special Order Adjustable Commercial and Institutional Door Closer

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 1461-Rw/PA-693

Choose Options Below

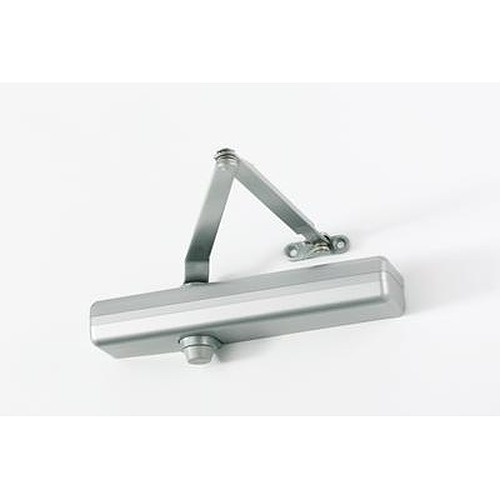

LCN 1461 adjustable commercial and institutional door closer . 1461 closers are designed for maximum versatility. With adjustable spring size 1-6 they can accommodate most installations right out of the box. Closer mounts hinge side, top jamb and parallel arm mount with optional Parallel arm bracket on either right or left swinging doors.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $211.00

Choose Finish:

Finish 693 Black Painted Finish 693

Overview

Special order item with 4 week lead time
  • Designed for both commercial and institutional applications.
  • Black finish.
  • Adjustable from size 1 through size 6 and is shipped adjusted to size 3.
  • Closer mounts hinge side (pull side), top jamb and parallel arm mount with parallel arm bracket (push side) on either right or left swinging doors.
  • For interior doors to 5’0” and exterior doors to 4’0”.
  • Adjustable hydraulic backcheck.
  • Adjustable closing speed and latching speed.

Available Options: Choose Options Above

More Info

  • Non-handed.
  • Mounting holes spaced 7-1/2" horizontally and 1" vertically,center to center.
  • Dimensions with standard cover-12-1/4"L x 2"H, 2-3/8" projection..
  • Maximum opening, 180° frame and trim permitting.
  • UL and ULC listed for self-closing fire-rated doors without hold-open.
  • Tested and certified under ANSI Standard A156.4, grade 1.
  • 1461 closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws.
  • Closer meets ADA requirements.
  • PA Shoe,1460-62PA required for parallel arm mounting.
