LCN 2010

Special Order Concealed Closer

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 2010

Choose Options Below

The concealed LCN 2010 series is a heavy duty closer designed to provide complete concealment. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left hand (LH)
Right hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.







  • If the door swings away from you to the left, it is a Left Hand door
  • If the door swings away from you to the right, it is a Right Hand door

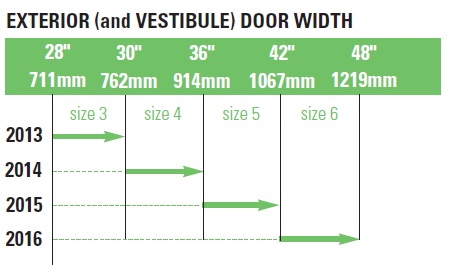

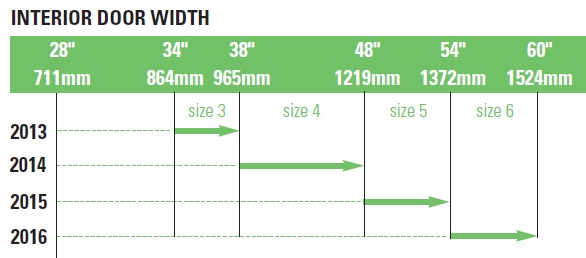

Size 1 2011 to meet ADA requirements
Size 3 2013
Size 4 2014
Size 5 2015
Size 6 2016

Help Me Decide

Specify next higher size closer where strong drafts exist.

Choose Finish:

689-Powder Coated Aluminum 689-Powder Coated Aluminum
695-Powder Coated Dark Bronze 695-Powder Coated Dark Bronze
693-Powder Coated Black 693-Powder Coated Black
696-Powder Coated Brass 696-Powder Coated Brass

Overview

special order item with 6 week lead time
  • Standard 2010 series closer shipped with standard arm, standard track, metal finish plate and wood and machine screw pack.
  • Single acting cylinder in head frame. Concealed arm and track in door top rail.
  • Sized cylinder;  size 1 for ADA compatibility and sized cylinders (2013,2014,2015 and 2016) for interior doors to 5’0” and exterior doors to 4’0”.
  • For aluminum, hollow metal, or wood, doors and frames.
  • Aluminum frame requires minimum 4” x 4”  tube.
  • The 2010 series is UL & ULC listed for self-closing doors without hold open. Tested and certified under ANSI Standard A156.4, grade 1.
