LCN 4011-MC-689

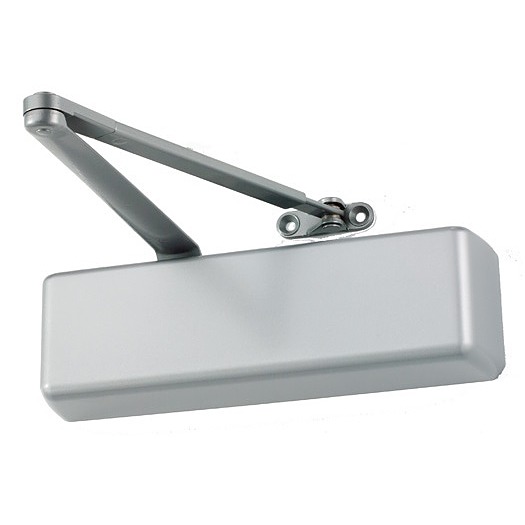

Special Order Heavy Duty Institutional Adjustable Door Closer with Metal Cover

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 4011-MC-689

Choose Options Below

LCN 4011-MC Smoothee - heavy duty institutional adjustable door closer. Designed specifically for institutional and other rugged high traffic applications. Interior/exterior doors, hinge side (pull side) mount. Adjustable spring size 1-5.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL- Aluminum (689) AL- Aluminum (689)
DKBRZ -Dark Bronze (695) DKBRZ -Dark Bronze (695)

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

  • Heavy duty closer designed specifically for institutional and other rugged high traffic applications.
  • With metal cover
  • Cast iron cylinder is adjustable from size 1 through size 5 and is shipped set to size 3.
  • Closer mounts hinge side (pull side), handed for either right or left swinging door
  • For interior doors to 4’6” and exterior doors to 3’6”

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Mounting holes spaced 2-1/2" vertically and 6" horizontally
  • Standard 4011 series closer is shipped with regular arm, standard plastic cover,
    and self reaming and tapping screws.
  • UL/cUL listed for self-closing, fire-rated doors without hold open
  • All weather fluid
  • Tested and certified under ANSI Standard A156.4, grade 1.
  • Forged Steel Main Arm
