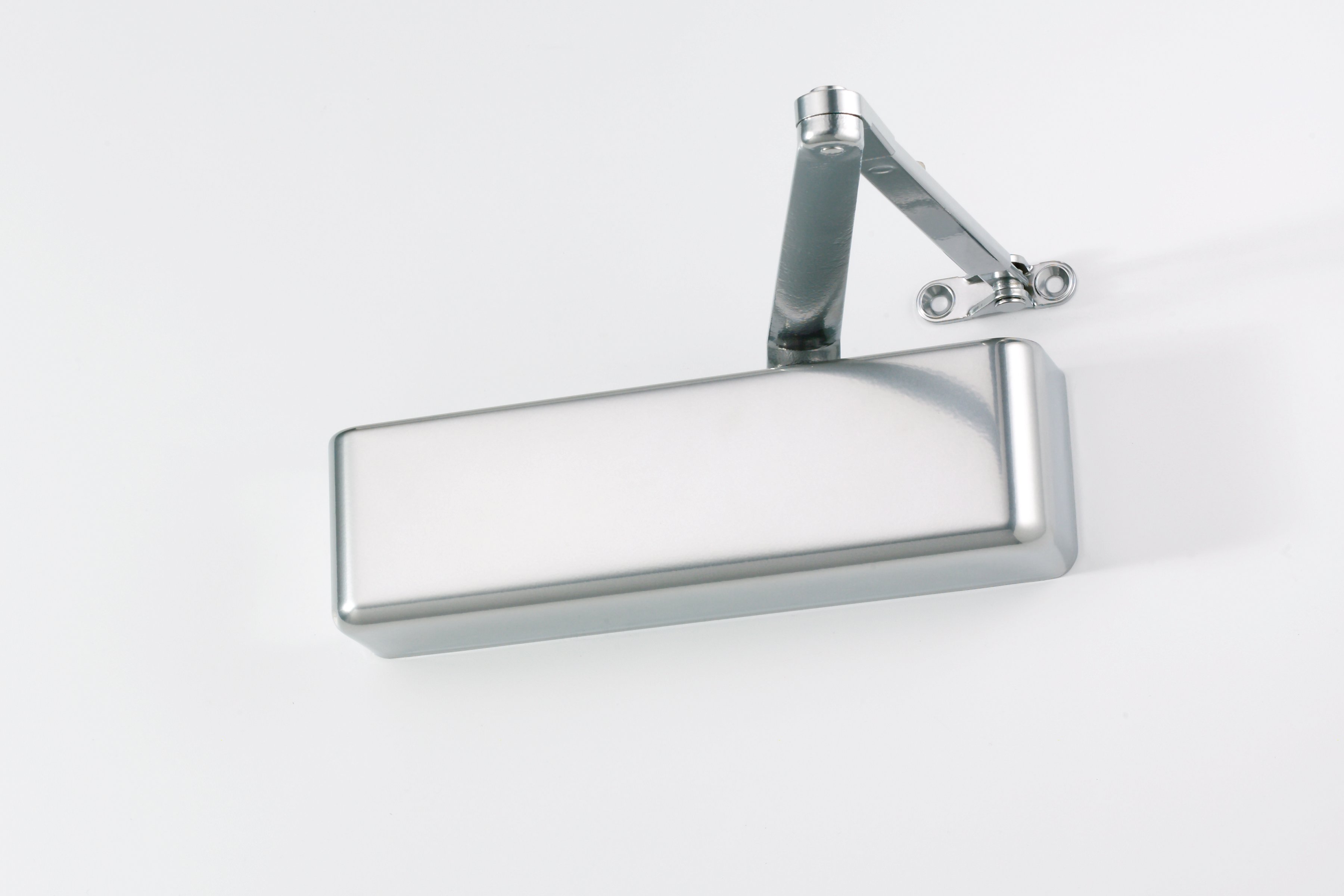

LCN 4041 Super Smoothee-Heavy Duty Institutional Adjustable Door Closer

Super Smoothee-Heavy Duty Institutional Adjustable Door Closer Photo

LCN 4041 Super Smoothee-Heavy Duty Institutional Adjustable Door Closer

SKU: 4041 LCN 4041 Super smoothee-heavy duty institutional adjustable door closer. LCN's most flexible heavy duty closer. Interior/exterior doors, hinge side, top jamb, parallel arm mount. Adjustable spring size 1-6.

Overview
Tech Specs
Related Items

Instructions & Templates

Super Smoothee-Heavy Duty Institutional Adjustable Door Closer

Serial no. / SKU: 4041

Product Overview

Heavy duty closer designed for institutional and other rugged high traffic applications.
Adjustable from size 1 through size 6 and is shipped set to size 3.
Closers to mount hinge side (pull side), top jamb (push side) or parallel arm (push side) w/PA Shoe on either right or left swinging doors.
For interior doors to 5’0” and exterior doors to 4’0”.

Super Smoothee-Heavy Duty Institutional Adjustable Door Closer

Serial no. / SKU: 4041

Technical Specifications

Options included -
US3 Polished Brass finish with full metal cover
Hold Open arm
CUSH-N-STOP® Arm (CUSH)-parallel arm with stop in soffit shoe
H-Cush-N-Stop Arm (HCUSH)-Provides hold-open function with templated stop/hold-open points
Spring Cush Arm (SCUSH)- parallel arm for abusive applications with spring loaded stop in the soffit shoe
Delayed Action- Delays closing door to allow slow moving traffic to pass thru.
Mounting holes spaced 2-1/4" vertically and 1"horizontally
Non-handed
Standard 4040 series closer shipped with regular arm, standard plastic cover,
and self reaming and tapping screws.
Meets ADA requirements
UL/cUL listed for self-closing doors without hold open
Tested and certified under ANSI Standard A156.4, grade 1
Cast iron cylinder
All-weather fluid
Available as a special order with other finishes.Contact us directly to arrange for your special order.
