LCN 4111CUSH

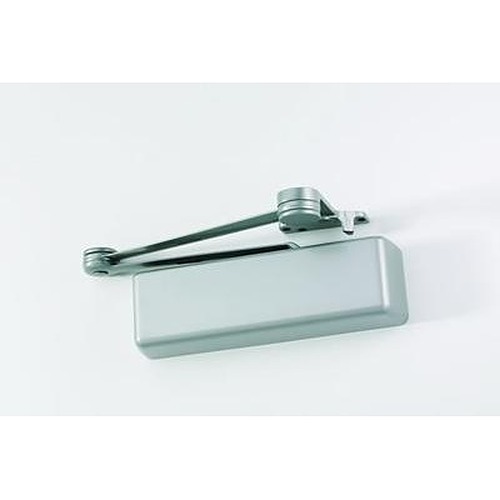

Smoothee Heavy Duty Parallel CUSH Arm Adjustable Closer

Quick Product Details

  • Adjustable Door Closer
  • Parallel CUSH Arm
  • Heavy Duty

or for better pricing

Price: $427.00 /each

SKU: 4111CUSH

Choose Options Below

This LCN 4111CUSH Smoothie Parallel CUSH Arm adjustable door closer is designed for high traffic institutional applications. This closer is UL and cUL listed for self-closing doors without hold-open. It is also certified to ANSI standard A156.4 Grade 1 requirements.

  • Stock Item
  • Order in the next 19 hours 30 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $427.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

AL- Aluminum (689) AL- Aluminum (689)
DKBRZ -Dark Bronze (695) DKBRZ -Dark Bronze (695)

Choose Handing:

Left hand (LH)
Right hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.







  • If the door swings away from you to the left, it is a Left Hand door
  • If the door swings away from you to the right, it is a Right Hand door



Replacing Your Door Closer?

Product Finder

Overview


Suited for :
  • High traffic institutional applications

Quality and Safety:
  • Tested and certified under ANSI Standard A156.4, Grade 1
  • UL and cUL listed for self-closing doors without hold open.
  • Closer meets ADA requirements

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place your special order.



Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left hand (LH)
    • Right hand (RH)

Product at A Glance

  • CUSH-N-STOP ARM, handed parallel arm features solid forged steel main arm and forearm with built-in stop in soffit shoe
  • 4111 Cylinder is adjustable from size 1 through size 5 and is shipped set to size 3
  • Mounting holes are spaced 2-1/2” vertically and 6" horizontally
  • Supplied with All Weather Fluid
  • Cylinder is made of cast iron
Style Door closer
Grade Heavy Duty
Handing Handed
Mounting Push side only
Door Width - Interior doors: maximum 4'6"
- Exterior Doors: maximum 3'6"

More Info


LCN 4111 series door closers are available with various arm options to suit the needs of your application. This specific closer is supplied with a CUSH-N-STOP arm which is a parallel arm that is handed and features a solid forged steel main arm and forearm that includes a built-in stop in the soffit shoe. This closer’s mounting holes are spaced 2-1/2” vertically and 6” horizontally.


Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
