Norton P7705PTO

Special Order Power Track Electromechanical Closer-Holder Support Unit

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: P7705PTO

Choose Options Below

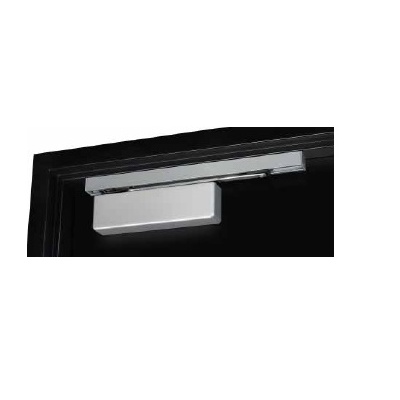

The Norton P7705PTO Power Track Electromechanical Closer-Holder combines the functions of a single point electromechanical door holder with a door closer. Push side mounting.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 (Aluminum Painted) 689 (Aluminum Painted)
690 (Dark Bronze Painted) 690 (Dark Bronze Painted)

Overview

Special order item with 4 week lead time
  • Push (stop) side mounting.
  • Support Unit controlled by compatible UL listed smoke detection equipment such as area ceiling detectors, pull stations, and
    remote alarm panels.
  • 24VAC/DC.
  • Non handed.
  • Single point hold open shall be selective through a range of 85° to 110°.
  • When there is power to the unit, the door will hold open at the selected hold
    open point. Any power interruption will release the arm slide and the door will close.
  • The door can be released manually at any time.

Available Options: Choose Options Above

More Info

  • Fail Safe: In the event of a power outage, the Power Track solenoid will be de-energized and the closer/holder will then operate as a normal door closer.
  • Fire/Smoke Control Circuit Interprets the alarm signal from the detector and provides switching contacts to interrupt power to the hold open solenoid and divert it to activate optional audio/visual alarms.
  • Alarm (Relay) Contacts Normally open in standby condition (energized, non-alarm state). These contacts close during an alarm condition (smoke detected) and switch power from the solenoid to an optional local alarm.
