Precision Hardware 2103-1703A

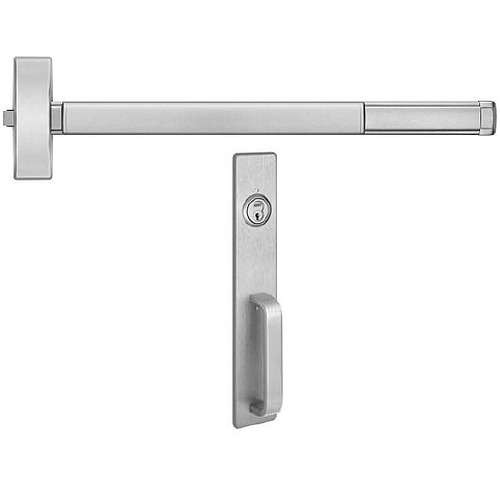

Apex Rim Exit Device with Night Latch Pull Trim

Quick Product Details

  • Rim Exit Device
  • Night-Latch Function With Pull Trim
  • Heavy Duty
Price: $1,550.00 /each

SKU: 2103-1703A

Choose Options Below

This Precision 2103-1703A is a rim exit device. The Apex series devices are preferred by many large facilities because of their aesthetics and reliable, efficient operation. This specific device operates with the night-latch function and it is supplied with the 1703A pull trim.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,550.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

630-Satin Stainless Steel 630-Satin Stainless Steel
613-Dark Bronze 613-Dark Bronze

Overview


Quality and Safety:
  • UL listed for panic hardware.
  • Certified to ANSI A156.3 Grade 1
  • 5 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Package includes a lever and  an escutcheon
  • Rim cylinder required (not included)
  • The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4” beyond the face of the door
  • Functions are field selectable except for the Double Cylinder option
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Rim exit device
Grade Heavy duty
Application Single and double doors with mullion
Function Night-Latch Function with Pull Trim:
- Key retracts latch and door remains locked
Handing Non-handed
Door Width 2'7" to 3'0"
Door Thickness 1-3/4"
Device Length 3'
Dogging Feature Hex key dogging standard
Strike S300, stainless steel, black powder coated
Latch Bolt Stainless steel deadlocking - 3/4" throw
Touchbar Height 39-15/16"- from floor (standard)
Stile Minimum width 4-1/2"
Escutcheon Size 15" high and 2-3/4" wide

More Info


Rim exit devices are very useful in multiple applications to provide for a simple and safe exiting solution. Precision Hardware offers a large variety of panic hardware to suit the needs of different door openings. This 2103-1703A Apex device is operated with the night latch function with a pull trim from the outside.
