Precision Hardware 2103-4903A

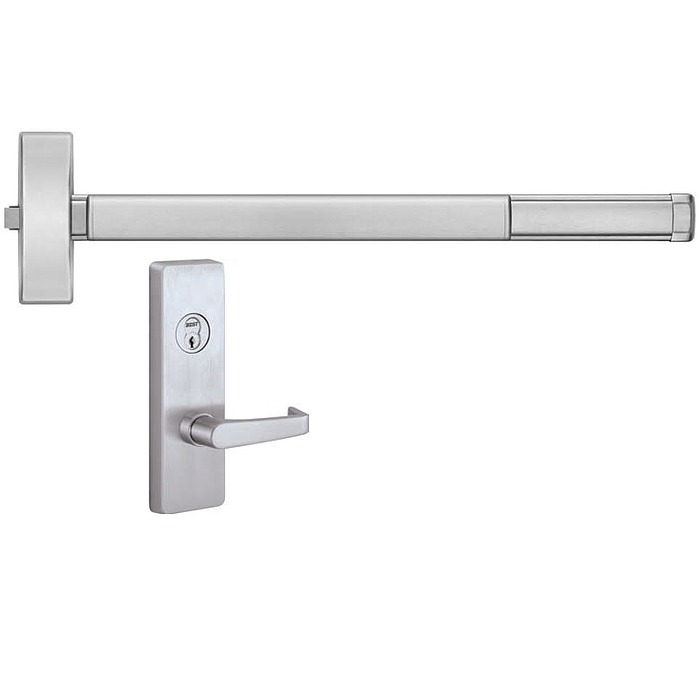

Apex Rim Exit Device with Night Latch Lever Trim

Quick Product Details

Rim Exit Device
Night-Latch Function With Lever
Heavy Duty

Price: $1,706.00 /each

SKU: 2103-4903A

Choose Options Below

This Precision 2103-4903A is a night-latch function Apex rim exit device. Package includes a lever and escutcheon. Rotate key to retract latch and the door remains locked. This device is supplied with standard hex key dogging.

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $1,706.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

630-Satin Stainless Steel

Choose Rail Size:

3FT

4FT

Help Me Decide

3’ bar for 2’7” to 3’0”wide door
4’ bar for 3’1” to 4’0” wide door

Choose Handing:

Left Hand Reverse (LHR)

Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

1 Choose Finish:
2 Choose Rail Size:
3 Choose Handing:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality and Safety:

UL listed for panic hardware.
Certified to ANSI A156.3 Grade 1
Levers comply with ADA, Americans with Disabilities Act
5 year limited warranty

Available Options: Choose Options Above

Finish:
- 630-Satin Stainless Steel
Rail Size:
Rail Size
3’ bar for 2’7” to 3’0”wide door

4’ bar for 3’1” to 4’0” wide door
- 3FT
- 4FT
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse (LHR)
- Right Hand Reverse (RHR)

Product at A Glance

Package includes a lever and an escutcheon
Rim cylinder required (not included)
The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4” beyond the face of the door
Functions are field selectable except for the Double Cylinder option
Furnished standard with machine screws and full thread wood/sheet metal screws

Style	Rim exit device
Grade	Heavy duty
Application	Single and double doors with mullion
Function	Night-Latch Function: - Key retracts latch and door remains locked
Handing	- Device is non-handed - Lever trim is handed
Door Thickness	1-3/4"
Dogging Feature	Hex key dogging standard
Strike	S300, stainless steel, black powder coated
Latch Bolt	Stainless steel deadlocking - 3/4" throw
Touchbar Height	39-15/16"- from floor (standard)
Stile	Minimum width 4-1/2"

More Info

Precision Hardware Apex rim exit devices are highly preferred and recommended by those in the know as the most aesthetically pleasing and efficient devices on the market. This specific model is equipped with a night-latch function lever for operation from the outside of the door opening with the use of a key.
