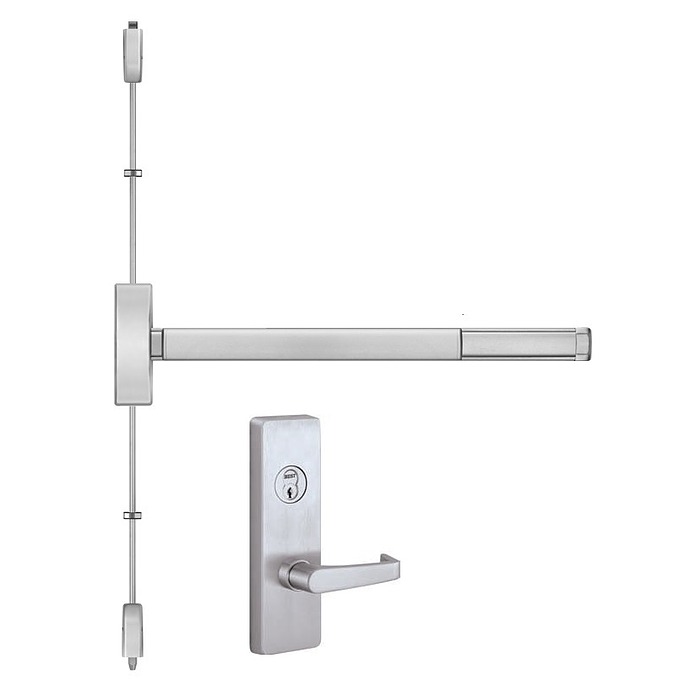

Precision Hardware Apex Surface Vertical Rod Exit Device with Lever Trim Exit Devices / Panic Bars

Precision Hardware 2208-V4908A-630

Apex Surface Vertical Rod Exit Device with Lever Trim

Quick Product Details

Vertical Rod Exit Device
Keyed Lever Function
Surface Mounted

Price: $2,305.00 /each

SKU: 2208-V4908A-630

Choose Options Below

This Precision 2203-V4908A-630 keyed lever, surface, vertical rod exit device includes a vandal resistant lever set. This set consists of a heavy duty lever designed to withstand abuse and vandalism. It is constructed with extra strength, shock-absorbing, overload springs and heavy duty cast, stainless steel internal components.

Stock Item
FREE Shipping
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $2,305.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder Rim:

Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$15.00

No Rim Cylinder Needed

Help Me Decide

Rim cylinder includes 2 keys.

Choose Finish:

Satin Stainless Steel (US32D)

1 Choose Handing:
2 Choose Cylinder Rim:
3 Choose Finish:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality and Safety:

UL listed for panic hardware.
Certified to ANSI A156.3 Grade 1
Levers comply with ADA, Americans with Disabilities Act requirements
5 year limited warranty

Available Options: Choose Options Above

Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR
Cylinder Rim:
Cylinder Rim
Rim cylinder includes 2 keys.
- Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
- No Rim Cylinder Needed
Finish:
- Satin Stainless Steel (US32D)

Product at A Glance

Package includes V4908A lever and escutcheon
Classroom function requires a rim cylinder (not included)
The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4" beyond the face of the door
Functions are field selectable except for the Double Cylinder option
Furnished standard with machine screws and full thread wood/sheet metal screws
This lever set is heavy duty and vandal resistant, designed to withstand abuse and vandalism. Composed of extra strength shock-absorbing “overload” springs and heavy duty cast stainless steel internal components.

Style	Vertical Rod exit device
Application	Single and double doors with mullion
Function	Keyed Lever: - Key locks and unlocks lever
Handing	Non-handed
Dogging Feature	Hex Key dogging standard
Door Width	3'0"
Door Height	7'0"
Door Thickness	1-3/4"
Strike	- Top Strike: S300, stainless steel, black powder coated (furnished standard) - Bottom Strike: S460 flush mounted, steel, black powder coated
Latch Bolt	- Top Latch bolt: Stainless steel deadlocking - 3/4" throw - Bottom Latch bolt: steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut
Touchbar Height	39-15/16"- from floor (standard)
Stile	Minimum width 4-1/2"

More Info

Protect your opening with this secure vertical rod exit device that is supplied with a vandal resistant . This is constructed of ultra-strong, shock absorbing “overload” springs as well as with heavy duty cast stainless steel internal parts which will serve to withstand abusive attempts or vandalism and keep your opening safe..
