Precision Hardware 5103-603

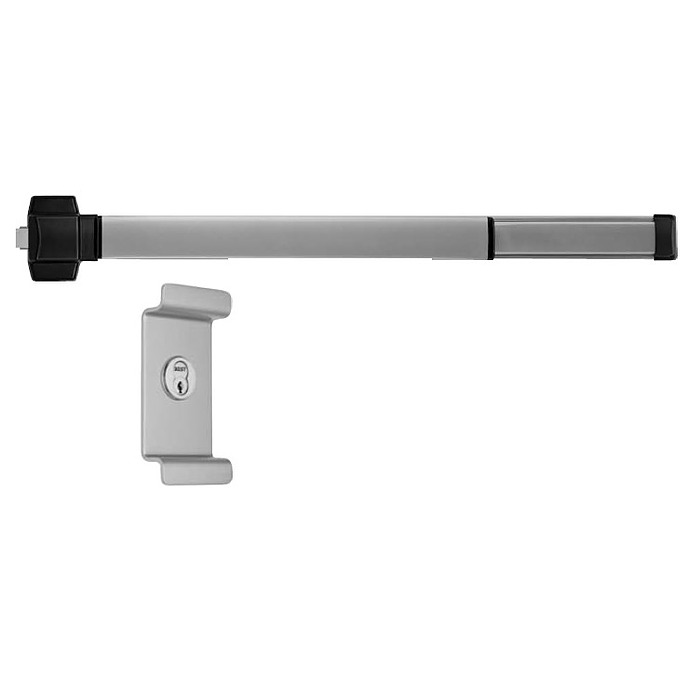

Reliant Rim Exit Device with Night Latch Pull Trim

Quick Product Details

  • Rim Exit Device
  • Night-Latch Function With Pull Trim
Price: $527.00 /each

SKU: 5103-603

Choose Options Below

This Precision 5103-603 is a night latch function Reliant rim exit device with a pull trim. Available in different rail sizes to fit doors from 2'7" to 4'0" wide. This device requires a rim cylinder (to be selected below.)

  • Stock Item
  • Order in the next 23 hours 13 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $527.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689 Aluminum Powder Coated 689 Aluminum Powder Coated

Choose Rail Size:

3FT

Help Me Decide

  • 3’ bar for 2’7” to 3’0”wide door



Choose Cylinder:

Need Help Deciding? QH chevron down
QH200 Rim Cylinder -Schlage C Keyway, Satin Chrome Finish + $15.00 QH200 Rim Cylinder -Schlage C Keyway, Satin Chrome Finish +$15.00
100CR -Keyed Arrow 6 pin small format (Best type) interchangeable Core + $38.00 100CR -Keyed Arrow 6 pin small format (Best type) interchangeable Core +$38.00
12E72-S2-RP-Best IC Core Rim Cylinder Housing, IC Core Not Included + $65.00 12E72-S2-RP-Best IC Core Rim Cylinder Housing, IC Core Not Included +$65.00
1C7A1-626-Best 7 Pin Uncombinated IC Core, A keyway + $40.00 1C7A1-626-Best 7 Pin Uncombinated IC Core, A keyway +$40.00
No Rim Cylinder Needed

Help Me Decide



  • QH200 Rim cylinder - Schlage C keyway with 2 keys
  • Arrow 6 pin keyed small format IC core. - with control key to install or remove IC core and 2 operating keys
  • Best interchangeable Core Rim Cylinder Housing, accepts all Best Lock IC cores and any small format IC Core (core not included)
  • Best Uncombinated 7 pin A keyway small format Best interchangeable SFIC core. No pins,springs or keys, ready to be keyed by a locksmith.



Overview


Quality and Safety:
  • UL listed for panic hardware.
  • Certified to ANSI A156.3 Grade 1
  • 3 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Rail Size: info icon

    • 3FT
  • Cylinder: info icon

    • QH200 Rim Cylinder -Schlage C Keyway, Satin Chrome Finish
    • 100CR -Keyed Arrow 6 pin small format (Best type) interchangeable Core
    • 12E72-S2-RP-Best IC Core Rim Cylinder Housing, IC Core Not Included
    • 1C7A1-626-Best 7 Pin Uncombinated IC Core, A keyway
    • No Rim Cylinder Needed

Product at A Glance

  • Rim cylinder required
  • Furnished standard with machine screws and full thread wood/sheet metal screws
Style Rim exit device
Application Single and double doors with mullion
Function Night-Latch:
- Key retracts latch
- Key is removable only when locked
Handing Non-handed
Door Thickness 1-3/4"
Dogging Feature Hex key dogging standard
Strike S300, stainless steel, black powder coated
Latch Bolt Stainless steel deadlocking - 3/4" throw
Touchbar Height 40-15/16"- from floor (standard)
Stile Minimum width 4-1/2"

More Info


Precision Hardware’s Reliant series of rim exit devices, are an economical, terrific choice for standard duty applications with single doors or double doors with a mullion that require panic hardware. This device is non-handed for flexible use on right handed or left handed doors. The package includes the S300 stainless steel strike.
