Precision Hardware FL2108-V4908A

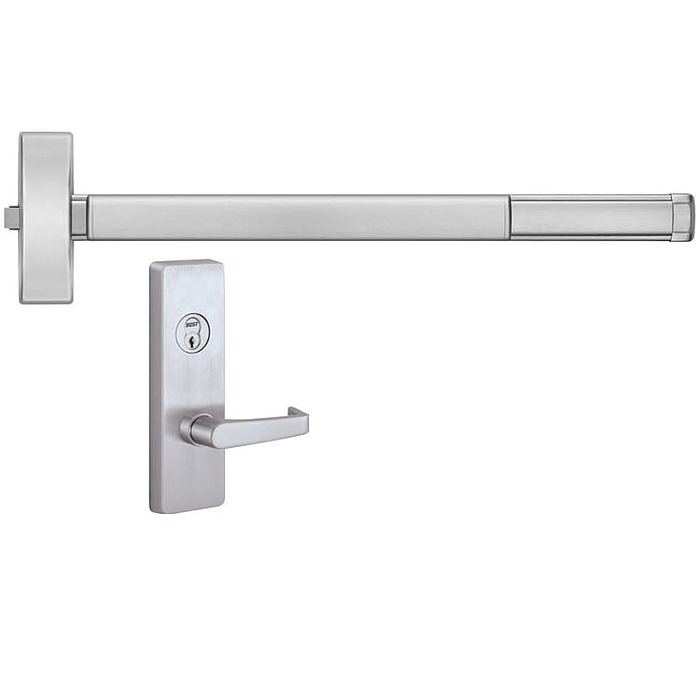

Fire Rated Apex Rim Exit Device with Keyed Lever Trim

Quick Product Details

Rim Exit Device
Fire Rated
Keyed Lever Function

Price: $2,443.00 /each

SKU: FL2108-V4908A

Choose Options Below

This Precision FL2108-V4908A is a fire rated rim exit device that is certified to ANSI A156.3 Grade 1, UL listed for fire exit hardware and compliant with UL10C and UBC7-2. The lever supplied with this package conforms to the ADA requirements.

Stock Item
Order in the next 19 hours 26 minutes to ship TOMORROW
FREE Same-Day ShippingWhen ordered before 2PM ET
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Price: $2,443.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse (LHR)

Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Rail Size:

3FT

4FT

Help Me Decide

3’ bar for 2’7” to 3’0”wide door
4’ bar for 3’1” to 4’0” wide door

Choose Finish:

Satin Stainless Steel (US32D)

1 Choose Handing:
2 Choose Rail Size:
3 Choose Finish:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Quality and Safety:

UL listed for Fire Exit Hardware
Certified to ANSI A156.3 Grade 1
Conforms to UL10C and UBC 7-2
Levers comply with ADA, Americans with Disabilities Act
5 year limited warranty

Available Options: Choose Options Above

Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse (LHR)
- Right Hand Reverse (RHR)
Rail Size:
Rail Size
3’ bar for 2’7” to 3’0”wide door

4’ bar for 3’1” to 4’0” wide door
- 3FT
- 4FT
Finish:
- Satin Stainless Steel (US32D)

Product at A Glance

Package includes a lever and an escutcheon
Rim cylinder required (not included)
The supplied lever set is heavy duty and vandal resistant designed to withstand abuse and vandalism. Composed of extra strength shock-absorbing “overload” springs and heavy duty cast stainless steel internal components
The Apex wide stile exit devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4" beyond the face of the door
Functions are field selectable except for the Double Cylinder option
Furnished standard with machine screws and full thread wood/sheet metal screws

Style	Fire Rated Rim exit device
Application	Single and double doors with mullion
Function	Keyed Lever: - Key locks/unlocks lever
Handing	Device is non-handed - Lever trim is handed
Door Thickness	1-3/4"
Escutcheon Size	9-11/16" high and 2-7/8" wide
Strike	S300, stainless steel, black powder coated
Latch Bolt	Stainless steel deadlocking - 3/4" throw
Touchbar Height	39-15/16"- from floor (standard)
Stile	Minimum width 4-1/2"

More Info

Fire rated exit devices are very useful in applications where fire requirements need to be met. This device is of the highest quality and strongest construction for heavy duty, high traffic applications. It is supplied with a keyed lever set for control of the door from the outside. Select above the rail size that will fit your door properly.
