Rixson 0700-Complete Offset Hung Overhead Closer

SKU: 0700-Complete - Includes All Components or Customize Below Rixson 0700 complete offset hung single acting overhead closer. For use on interior and exterior low to medium usage aluminum door and frames. Package includes closer body, top arm, mounting bracket and cover plate . Complete closer packages can include everything that you need for a new installation. For door weights up to 200lbs. Hanging means by others.

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
Body

Product Overview

  • Single Acting
  • For exterior or interior doors, For low to medium usage
  • For doors with weight to 200 lbs.
  • Handed
  • Photo shown with offset arm and cover plate (not included)

Technical Specifications

Product Description & Features

  • Available non hold-open or hold open. Specify degree (90° or 105°, A or N)
  • For 1-3/4" doors
  • Adjustable closing speed
  • Adjustable hydraulic backcheck
  • Not available with CWF or DA
  • Applied stop #60131 required (order separately)
  • Metal frames require #192 mounting channel which must be welded into frame.
  • Wood frames require #198 mounting plate.
  • Cover plate only used with WM/MW models.

Available to order with a 1/2" ELS option. For ADA compliance, Model 706 is available to order. Contact us directly to arrange for your special order.
Mounting Brackets

Product Overview

Attaching (mounting) brakcets for 700 & 800 Series Overhead Concealed Closers

Technical Specifications

There are no technical specifications for this product.

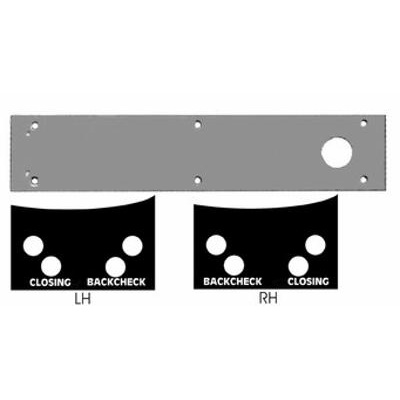

Cover Plate

Product Overview

Cover plate for 700 Series Single Acting Closers.

Dimensions: 3.75 x 18.25" (approx).

This cover plate is supplied handed to match the hand of the closer body.


Technical Specifications

There are no technical specifications for this product.
Arm Package

Product Overview

Arm Package for W0700 Series Overhead Concealed Closer installations.

A complete installation requires an 08005010 or 08005011 channel package.

This arm is handed and cannot be reversed.


Technical Specifications

There are no technical specifications for this product.
Channel Package

Product Overview

Channel package for use with 08002010 Arm Paackage.

This channel includes screws for use with wood doors.


Technical Specifications

There are no technical specifications for this product.
