Qualifiedhardware.com is the leading online store for commercial door hardware. Choosing the right commercial door hardware is not the easiest of tasks, but we are here to help you make the right decision. On our site, you will find all the major brands and a large inventory to meet your commercial door hardware needs. If you do not know anything about door hardware, call or email us and our associates will help you choose the right product. We offer free phone assistance and a contractor hotline. We carry quality products from companies like LCN, Norton, Sargent and Rixson.
Our inventory includes floor closers, overhead closers, commercial door locks, smok-checks, exit devices, exit alarms, electric strikes, keying supplies and various other security products. If you are looking to replace a rare to find part or want the latest technology in commercial door hardware, we are your one-stop solution.
With our free shipping and a no hassle returns policy, we believe you will not get a better deal anywhere else.

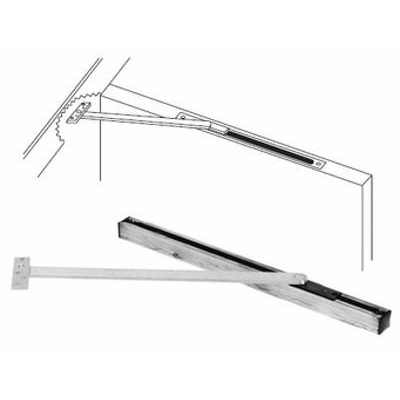

Rixson 1-Series Heavy Duty Concealed Mount Holder/Stop
SKU: 1-Series Recommended for high traffic, heavy abuse installations for interior or exterior doors. The Rixson 1 series of concealed mount overhead stops and holders are used to protect door assemblies. They cut down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism. By limiting the door travel, they can add years to the life of the door, frame, and hanging means.
- Instructions & Templates
Heavy Duty Concealed Mount Holder/Stop
Serial no. / SKU: 1-SeriesProduct Overview
- Doors may be single or double acting
- Non-handed
- Slide track design
Heavy Duty Concealed Mount Holder/Stop
Serial no. / SKU: 1-SeriesTechnical Specifications
- Recommended for high traffic, heavy abuse installations
- Heavy shock absorber spring provides 5°-7° compression before dead stop
- Surface on/off knob on hold open models
- Stop or hold open functions
- Complete screw packet allows for wood or metal door and frame applications
- Available in all standard architectural finishes
- Non-metal slide block and shock block
- 110° maximum opening
- For 1-3/4" minimum door thickness
- Track is 1-3/16" tube
- UL listed as stop function
Available to order with Torx® screws, prepped for thicker doors and the LS (less spring) option which is available for doors being used with electromechanical closers & floor closers with dead a stop option. Also available in other finishes. Contact us directly to arrange for your special order.
Model Selection:
Steps to selecting the correct model -
- Select the column with the correct hanging means for your door - either offset pivots/butt hinges OR center hung pivots
- Select the row with the door size range that your door falls within
- Select the model you need - either Hold Open or Stop
- Select the correct finish
* On 24-28" doors - butt hinges only.
