Rixson 2-336-606

Special Order Adjustable Standard Duty Concealed Stop

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 2-336-606

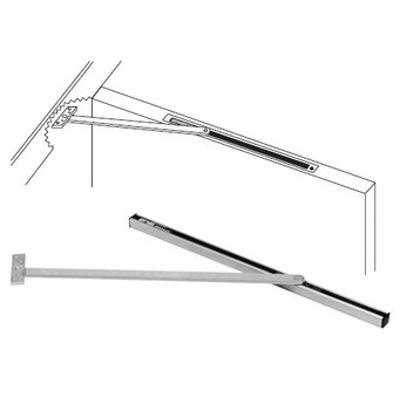

The Rixson concealed mount 2 series is recommended for medium-traffic, medium-weight interior or exterior doors. Overhead stops and holders are used to protect door assemblies. They cut down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism. By limiting the door travel, they can add years to the life of the door, frame, and hanging means.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order item with 4 week lead time
  • Concealed overhead stop for doors 3-1/16"-36" wide.
  • For 1-3/4 thick doors hung on standard 4-1/2 x 4-1/2 hinges or 3/4 offset pivots.
  • Doors may be single or double acting.
  • Non-handed.
  • Slide track design.
  • Satin brass finish.

More Info

  • Recommended for medium-traffic, medium-weight doors
  • Degree of opening is fully adjustable and can be adapted to changing needs
  • Heavy shock absorber spring provides 5°-7° compression before dead stop
  • Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in field
  • Complete screw packet allows for installation in wood or metal door and frame
  • Standard architectural finishes available
  • Non-metal slide block and shock block
  • 110° maximum opening
  • Track is 3/4" tube
  • UL listed as stop function
