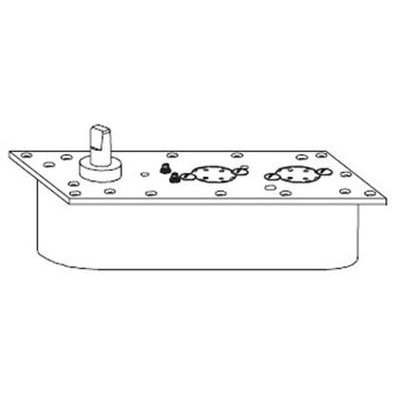

Rixson 30-Complete Double Acting Floor Closer

SKU: 30-Complete - Includes All Components or Customize Below When a floor closer that permits a door to swing in both directions is needed the Rixson 30 series double acting floor close fills the bill. For interior doors up to 200 LBS. and up to 4' 0" x 8' 6". With adjustable closing speed valves for each direction of door swing. Complete closer packages can include everything that you need for a new installation.

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
Body

Product Overview

  • Double Acting
  • Non-handed
  • For interior doors
  • For door weights up to 200 lbs.
  • Door sizes up to 4' 0" x 8' 6"

Technical Specifications

  • Adjustable closing speed valves for each direction of door swing
  • Mechanism returns door to center
  • Available non hold-open (NHO) or automatic hold open (AHO) at 90 degrees or 100 degrees ( 90 degrees requires 95 degree swing)
  • Maximum door opening 103 degrees
  • Overhead stop recommended for exterior or high traffic doors
  • Uses steel cement case
  • Not allowed for fire rated doors
  • For single acting applications - #60131 applied stop required

Available as a special order with CWF, ELS, SC or PH options. Contact us directly to arrange for your special order.
Cement Case

Product Overview

Steel cement case for 30 series floor closers.

Includes closer mounting screws.


Technical Specifications

Case size: 14-9/16" L x 5-3/8" W x 3-5/8" H

Templating information can be found with the floor closer body section.

Floor Plate

Product Overview

Floor plate package for 30 series center hung floor closers.

Package includes two piece floor plate and mounting screws.


Technical Specifications

Plate size: 15-1/8" x 5-1/2"
Size includes both plates.

Available as a special order with other finishes. Contact us directly to arrange for your special order.
Arm Package

Product Overview

Standard center hung arm package for 30/40 Series closers.
Includes mounting & alignment screws, and shims/shim stud assembly.

Finish applies to adjustment screws and washers.


Technical Specifications

Available as a special order with other finishes. Contact us directly to arrange for your special order.
Top Pivot

Product Overview

For Center Hung Applications
  • Fully Concealed
  • Center Hung
  • Non-handed
  • Earthquake Tolerant

Technical Specifications

Ideal for locations where there is a fear of dramatic building settling.
  • Long pivot pin engages in top of door 1-3/4"
  • Can be used with any center hung bottom pivot.
  • Walking beam-type pivot–1/2" diameter pivot pin
  • Oil-impregnated sintered bronze bearing
  • Completely concealed when door is closed
  • Furnished with wood and machine screws
  • For doors over 8' 6" in height
Available in all standard architectural finishes. Contact us directly to order a finish not shown.

Related Documents

Product Overview

For center hung applications

  • Fully Concealed
  • Center Hung
  • Non-handed
  • For standard weight doors
  • Furnished standard with most pivot sets and floor closers

Technical Specifications

  • Standard top pivot for Models 370 and 117-3/4 pivot sets. Also used with 28, 30, 40 and 50 Series floor closers
  • Walking beam-type pivot–1/2" diameter pivot pin with 3/4" engagement
  • Oil-impregnated sintered bronze bearing
  • Completely concealed when door is closed
  • Furnished with wood and machine screws

Available in all standard architectural finishes. Contact us directly to order a finish not shown.

Related Documents
