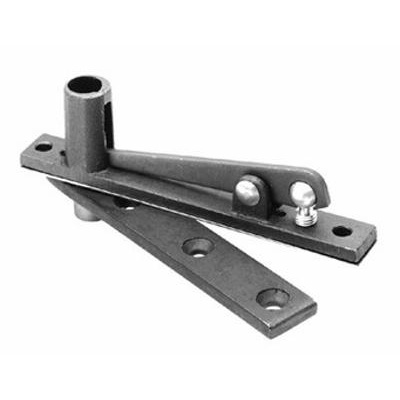

Rixson 320 Center Hung Top Pivot

SKU: 320 The Rixson 320 center hung top pivot is the standard top pivot for models 127-3/4 and 128-3/4 pivot sets. Completely concealed when door is closed. For light weight doors .

  • Instructions & Templates

Center Hung Top Pivot

Serial no. / SKU: 320

Product Overview

For center hung applications
  • Fully Concealed
  • Center Hung
  • Non-handed
  • For light weight doors
Furnished standard with 127-3/4 and 128-3/4 pivot sets.

Center Hung Top Pivot

Serial no. / SKU: 320

Technical Specifications

  • Walking beam-type pivot
  • 1/2" diameter pivot pin with 3/4" engagement
  • Oil-impregnated sintered bronze bearing
  • Completely concealed when door is closed
  • Furnished with wood and machine screws
Available in all standard architectural finishes. Contact us directly to order a finish not shown.
