Rixson 327-Complete 3/4" Offset Floor Closer

SKU: 327-Complete - Includes All Components or Customize Below The Rixson 327 offset floor closer is used as a concealed floor closer for independently hung doors - butt hinges or pocket pivots. Door hanging means by others determines maximum door weight. Complete closer packages can include everything that you need for a new installation

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
Body

Product Overview

  • Single Acting
  • Handed
  • For interior doors
  • For door Widths up to 4' 0"

Technical Specifications

Used as a concealed floor closer for independently hung doors using butt hinges or pocket pivots.
  • Door hanging means (by others) determines maximum door weight
  • 90° maximum door swing
  • Auxiliary stop recommended
  • Complete installation requires closer body, mortised door rail and slide track type bottom arm
  • Separate and independent valves for closing speed, latch speed and backcheck
  • Not available in “PH”, “DA”, or “HO”
  • Extended spindle required for threshold applications
  • Uses cycolac cement case
  • Special template may be required
Configurations including ELS can be found in our extensive inventory. Also available as a special order with the CWF option. Contact us directly to arrange for your special order.

Related Documents

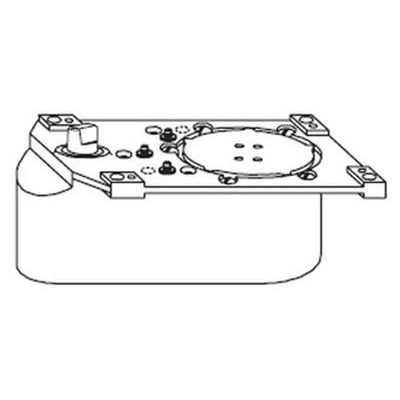

Cement Case

Product Overview

Cycolac cement case for use with 25/26/27/28 Series closers.

Cement case includes closer mounting screws.


Technical Specifications

Case size: 11-1/8" L x 5-7/8" W x 4-1/16" H

Templating and instructional information can be found with the floor closer body section.

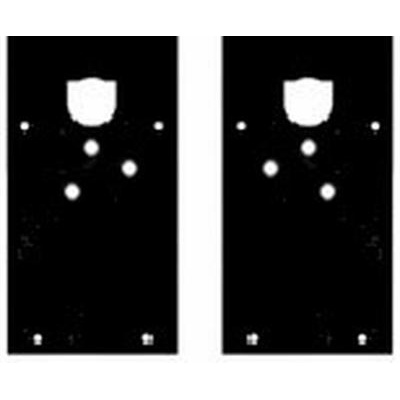

Floor Plate

Product Overview

Floor plate package for 327 Series offset floor closers.

Package includes mounting screws.


Technical Specifications

Plate size: 11-3/8" x 6-1/8"

Available as a special order with other finishes. Contact us directly to arrange for your special order.
Arm & Track Package

Product Overview

Bottom arm & track package for 327/53 Series closers.
  • Non-handed
  • Includes mounting hardware

Technical Specifications

There are no technical specifications for this product.
