Rixson 328-Complete Center Hung Closer for Patch Fittings

SKU: 328-Complete - Includes All Components or Customize Below When a floor closer that permits a heavy interior door to swing in both directions is needed the Rixson H40 heavy duty series double acting floor close fills the bill. For interior doors up to 1000 LBS. and 1-3/4" thick. With adjustable closing speed valves for each direction of door swing. Complete closer packages can include everything that you need for a new installation

Change or Remove Components (optional)

  • Instructions & Templates for this Kit
Body

Product Overview

  • Single Acting
  • Handed
  • For exterior or interior doors
  • For glass doors with patch fittings
  • For door weights up to 325 lbs.

Technical Specifications

  • Patch fittings by others
  • Built-in positive dead stop at 90° prevents door from swinging beyond the opening degree
  • Separate and independent valves for closing speed, latch speed and backcheck
  • Normally supplied as selective hold open (SHO) at same degree as dead stop
  • Uses cycolac cement case
  • Not allowed for fire rated doors
  • Frame or applied stop required, such as #60131
Available as a special order with 85°, 95° or 105° opening swing, CWF, DA, ELS, NHO, SC or PH options. Contact us directly to arrange for your special order.

Related Documents

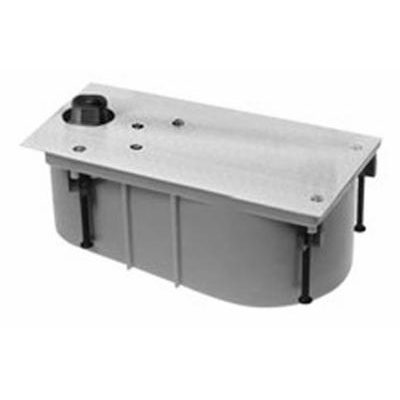

Cement Case

Product Overview

Cycolac cement case for use with 25/26/27/28 Series closers.

Cement case includes closer mounting screws.


Technical Specifications

Case size: 11-1/8" L x 5-7/8" W x 4-1/16" H

Templating and instructional information can be found with the floor closer body section.

Floor Plate

Product Overview

Floor plate package for 28S & 328S Series center-hung floor closers.

Package includes mounting screws.

Technical Specifications

Plate size: 11-7/8" x 6-1/8"

Available as a special order with other finishes. Contact us directly to arrange for your special order.
