Left Hand Shown







Right Hand Shown

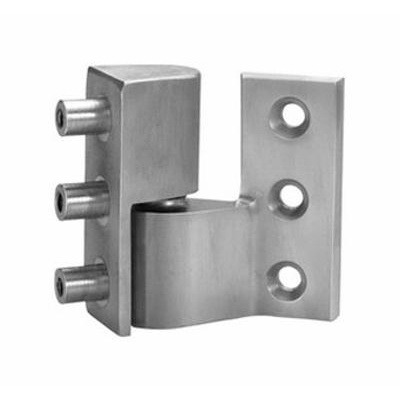

Rixson 419

Full Surface Intermediate Pivot

Quick Product Details

  • Intermediate Pivot
  • Offset Hung
  • Full surface
Price: $344.00 /each

SKU: 419

Choose Options Below

This Rixson 419 3/4" offset full surface Intermediate pivot is optional for flush frame and door applications only, where the door and jamb portion cannot be mortised.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $344.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

626 - Satin Chrome (US26D) right HAND SHOWN 626 - Satin Chrome (US26D)

Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview


Suited for:

  • Applications where the door and jamb portions cannot be mortised


Quality:

  • 2 year limited warranty

Special Orders Available:
  • All standard architectural finishes available
Contact us directly to place your special order.

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Flush frame and door applications only where the door and jamb portion cannot be mortised
  • Made with non-ferrous base metal
  • Maintains door alignment
  • Includes wood and machine screws
Style Intermediate pivot
Application Offset-Hung
Offset 3/4" (measured from centerline of pivot to face of door)
Door Handing Handed
Door Thickness 1-3/4"

More Info


Intermediate pivots are used to maintain the alignment between the top pivot and the bottom pivot on doors that are taller than standard. This Rixson 419 intermediate pivot is for very tall doors on which the intermediate pivot cannot be mortised, not on the jamb portion nor on the door  portion. It is a full surface pivot, meaning, it gets mounted onto the door and jamb without being mortised. made of non-ferrous base metal and designed for doors that are 1-3/4” thick.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
