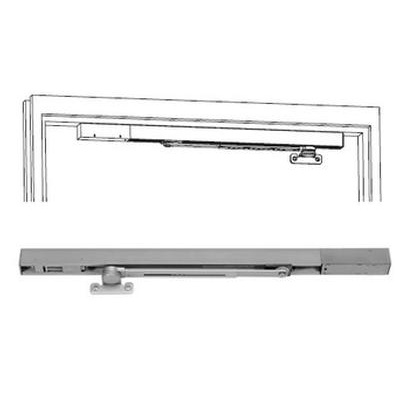

Rixson 99-Series Electromechanical Hold Open

Rixson 99-Series Electromechanical Hold Open

SKU: 99-Series Rixson's Checkmate 99 series electromagnetic holder is just what is required for doors that need to be held open but already have perfectly good door closers! The 99 Checkmate can be detectored for a complete stand-alone installation or non-detectored as part of an established building alarm system. The Checkmate 99 can be used with any make or model of door closers (except overhead concealed). Even floor closer installations lend themselves to this product.

Overview
Tech Specs

Instructions & Templates

Electromechanical Hold Open

Serial no. / SKU: 99-Series

Product Overview

Surface mounted
Single acting
Non-handed
Used with independent closers
Detectored Checkmate 99 available as a non sock special order only.

Electromechanical Hold Open

Serial no. / SKU: 99-Series

Technical Specifications

Available in sprayed finishes
85° - 110° hold open
Push side or pull side mount
Detectored or non-detectored
24vAC/24vDC or 120 vAC (.090 Amps @ 24V - .035 @ 120V)
For doors 32"-54" wide
Surface or concealed wiring
UL listed door holder
Holding force 25-35 lbs

Available in other painted finishes. Contact us directly to arrange for your special order.

Model Selection:
Steps to selecting the correct model -

Select the row with the correct mount for your door - either PUSH side or PULL side
Select the model you need - either Detectored or Non-Detectored
Select the correct finish
Select the correct voltage
