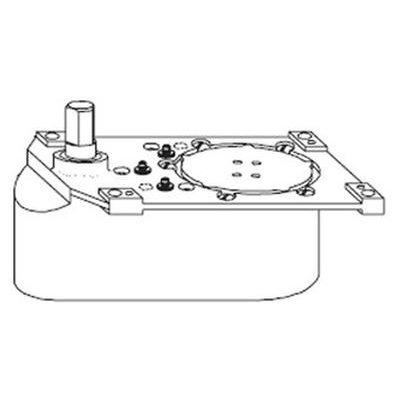

Rixson DAPH27-S Special Order DA-PH Offset Floor Closer Body

Special Order DA-PH Offset Floor Closer Body Photo

Rixson DAPH27-S Special Order DA-PH Offset Floor Closer Body

SKU: DAPH27-S Considered the standard for heavy duty offset floor closers, Rixson's 27 Series satisfies most offset-hung requirements with a positive stop and numerous options. The Rixson DAPH27-S floor closer has three options- Delayed Action option (DA), permits door to remain ajar (at 70°) for up to 30 seconds, the Physically Handicapped (PH) option to comply with guidelines established inthe American With Disabilities Act, also included is Selective Hold-Open (S), Hold-open may be turned on/off.

Overview
Tech Specs

Special Order DA-PH Offset Floor Closer Body

Serial no. / SKU: DAPH27-S

Product Overview

Single Acting
Selective hold-open feature included
Handed
For interior doors
For door weight to 450 lbs.
For door Width up to 4'0""

Door size & weight guidelines are determined using the appropriate number of intermediate pivots.

Note: DA and PH option equipped closers are not recommended for exterior applications. Lower opening force also means lower closing force, which needs to be considered. These closers must not be used in fire rated openings.

Special Order DA-PH Offset Floor Closer Body

Serial no. / SKU: DAPH27-S

Technical Specifications

Built-in positive dead stop prevents door from swinging beyond the opening degree

Separate and independent valves for closing speed, latch speed and backcheck

Delayed action permits the door to remain ajar for up to 30 seconds to allow passage (not recommended for exterior applications because of weather factors)

With PH option, five pounds of opening force is all that is required to swing the door open. Not recommended for exterior applications. Lower opening force also me

Uses cycolac cement case

Vertical door adjustment

Intermediate pivot required

Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot

Other configurations including CWF, ELS, SC and PH can be found in our extensive inventory. Also available as a special order with 95� opening swing, CWF, ELS, SC or PH options as required. Also available with opening degrees other than 90�.Contact us directly to arrange for your special order.
