Rixson Duo-Complete Double Acting Floor Closer

SKU: Duo-Complete - Includes All Components or Customize Below When a floor closer is needed to allow a low/medium traffic interior door to swing in both directions the Rixson Duo-Chek center hung floor closer is the perfect choice. The Dou-Chek will accommodate doors up to 125 lbs and 42" wide.

Change or Remove Components (optional)

Instructions & Templates for this Kit

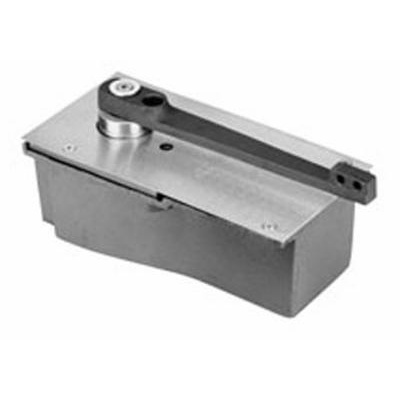

Duo-Chek 10 Center Hung Floor Closer Body with Hold Open (10)

Product Overview

Double Acting
Non-handed
For low/medium traffic interior doors
For door weights to 125 lbs.
For door sizes up to 2' 10"x 7'0" - Select Models 10 or 12
Model 10 is 90° automatic hold open; 12 is non hold-open

Technical Specifications

Not allowed for use on labeled fire doors
Uses steel cement case
Adjustable closing speed
Centering adjustment
105° maximum opening
1-3/4" door thickness

Available as a special order with ELS option. Contact us directly to arrange for your special order.

Product Overview

Double Acting
Automatic hold open at 90 degrees.
Non-handed
For low/medium traffic interior doors
For door weights to 125 lbs.
For door sizes up to 2' 11" to 3' 6" x 7' 0"

Technical Specifications

Not allowed for use on labeled fire doors
Uses steel cement case
Adjustable closing speed
Centering adjustment
105° maximum opening
1-3/4" door thickness

Available as a special order with ELS option. Contact us directly to arrange for your special order.

Product Overview

Double Acting
Non-handed
For low/medium traffic interior doors
For door weights to 125 lbs.
For door sizes up to 2' 10"x 7'0" -
For hold open select model #10.

Technical Specifications

For door sizes up to 2' 11" to 3' 6" x 7' 0" - Select Models 15 or 16
Not allowed for use on labeled fire doors
Uses steel cement case
Adjustable closing speed
Centering adjustment
105° maximum opening
1-3/4" door thickness

Available as a special order with ELS option. Contact us directly to arrange for your special order.

Product Overview

Double Acting
Non-handed
For low/medium traffic interior doors
For door weights to 125 lbs.
For door sizes up to 2' 11" to 3' 6" x 7' 0"

Technical Specifications

Not allowed for use on labeled fire doors
Uses steel cement case
Adjustable closing speed
Centering adjustment
105° maximum opening
1-3/4" door thickness

Available as a special order with ELS option. Contact us directly to arrange for your special order.

Product Overview

Cement case for 10/12/15/16 Duo-Chek Series closers.

Technical Specifications

Case size: 8-3/4" x 4-7/16" x 3-1/16" H

Templating and instructional information can be found with the floor closer body section.

None [Subtract $57.00]

Floor Plate

Duo-Chek Floor Plate (104020)

Product Overview

Floor plate package for 10/12/15/16 Duo-Chek Series floor closers.

Package includes mounting screws.

Technical Specifications

Plate size: 8-7/8" x 4-1/2"

Available as a special order with other finishes. Contact us directly to arrange for your special order.

None [Subtract $32.00]

Arm Package

Duo-Chek Arm Package (102026)

Product Overview

Arm package for 10/12/15/16 Duo-Chek Series closers.

Non-Handed
Select finish for adjusting screws

Technical Specifications

Available as a special order with other finishes. Contact us directly to arrange for your special order.

None [Subtract $47.00]

Top Pivot

Light Duty Center hung top pivot (101020)

Product Overview

Application

Fully concealed
Center Hung
Non-handed
For door weights to 125 lbs.

Standard top pivot for Duo-Check floor closers.

Technical Specifications

Product Notes:
Available as a special order with other finishes. Contact us directly to arrange for your special order.
