Rixson EL608-Complete

Center Hung Overhead Closer

Quick Product Details

  • Overhead Closer
  • For Aluminum Doors and Frames
  • Center-Hung
  • Standard Duty
  • Single/Double-acting
Starting price: $613.00 /each

SKU: EL608-Complete can include all components

Choose Options Below

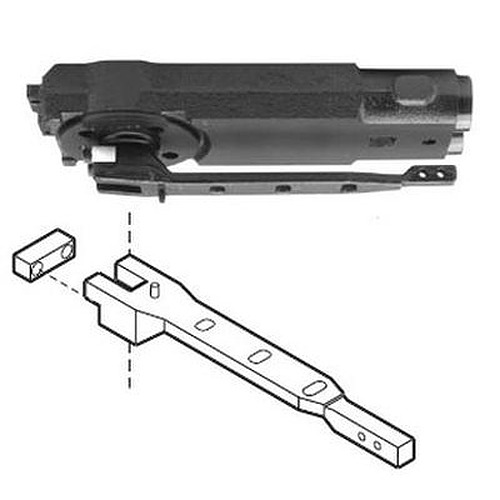

This Rixson EL608 is an overhead concealed closer for interior and exterior aluminum doors and frames with a low to medium usage rate, weighing up to two-hundred pounds. This package includes a closer body, end-load arm, frame mounting clips and bottom pivot 608011.

  • Stock Item
  • Order in the next 7 hours 25 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $613.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Components:

1) Body:

Overhead Concealed Closer Body image
Buy Separately

2) Mounting Kit:

Mounting Kit for 608 Series image
Buy Separately


3) End Load Arm:

End Load Arm image
Buy Separately

4) Pivot:

Bottom Pivot Package image
Buy Separately


5) Optional Stop:

Applied Stop image
Buy Separately


Choose Hold Open:

NHO - Non Hold Open
90 degrees AHO - Automatic Hold Open
105 degrees AHO - Automatic Hold Open

Help Me Decide

No hold-open

Door does not remain open (door will swing 130 degrees in both directions)

Automatic hold-open at 90 degrees

Door will remain open at 90 degrees until manually closed

Automatic hold-open at 105 degrees

Door will remain open at 105 degrees until manually closed





Overview


Suited for:
  • Exterior and interior aluminum doors and frames with low to medium traffic.

Quality:
  • 2 year limited warranty

Available Options: Choose Options Above

  • Hold Open: info icon

    • NHO - Non Hold Open
    • 90 degrees AHO - Automatic Hold Open
    • 105 degrees AHO - Automatic Hold Open

Product at A Glance

Style Overhead closer
Application Center-hung
Door Handing Non-handed
Function Single acting or double acting
Door Weight Up to 200 lb
Door Size - Exterior door: 3'6" x 8'0"
- Interior door: 3'8" x 8'0"
Door Thickness 1-3/4"

More Info


Rixson overhead concealed closers are designed for applications where floor closers cannot be properly installed but aesthetics is still an important factor. In such situations Rixson’s overhead closers are great for they are concealed in the header of the frame. The EL608 includes an end-load arm which makes it specific for 1-3/4” doors. It can be used as single-acting or double-acting and on right or left handed doors. Designed for exterior and interior aluminum doors that have a low to moderate traffic rate.
